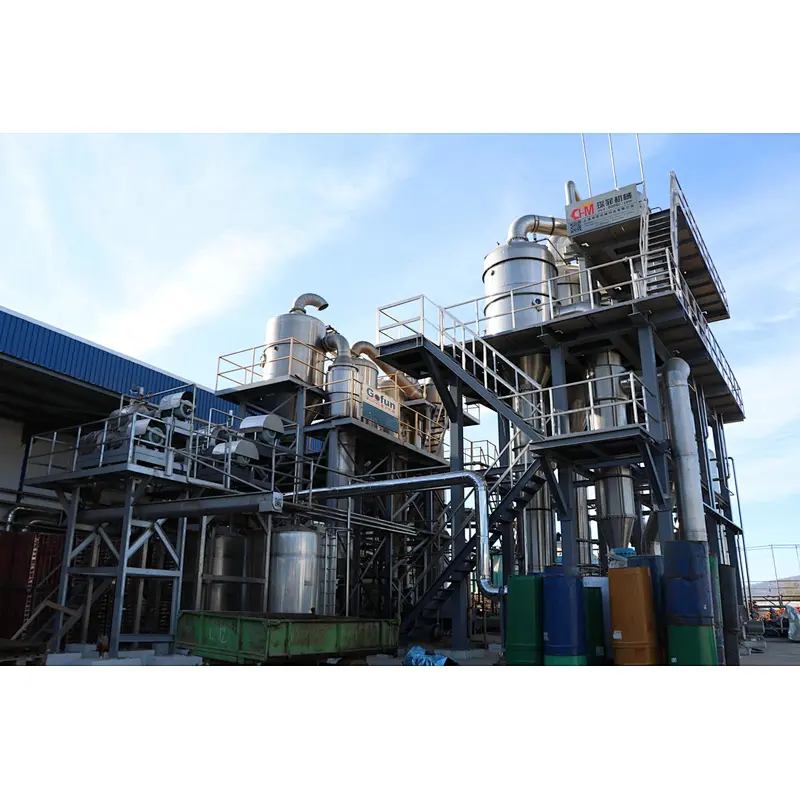

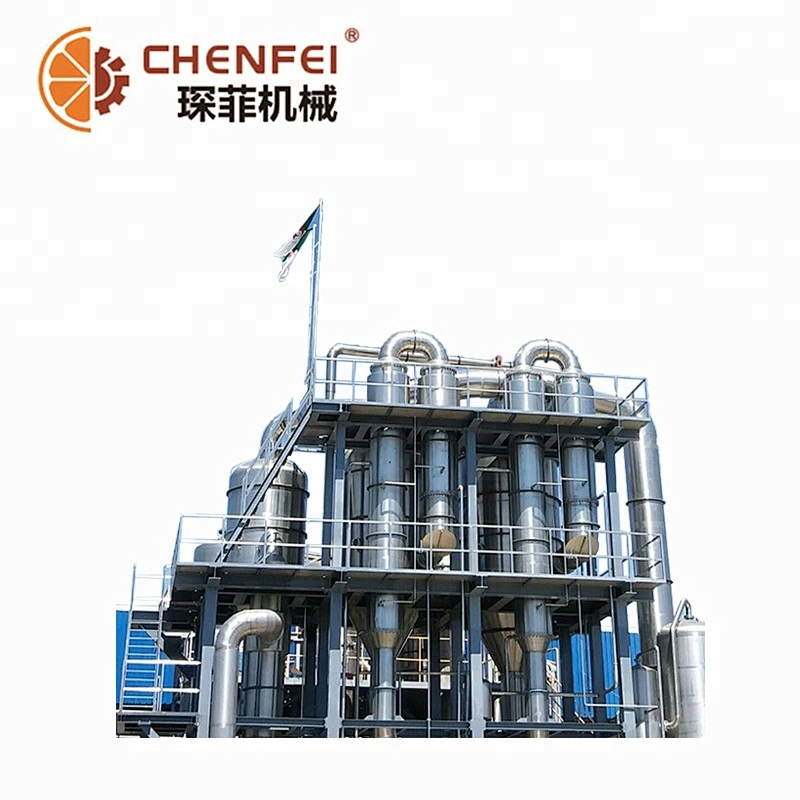

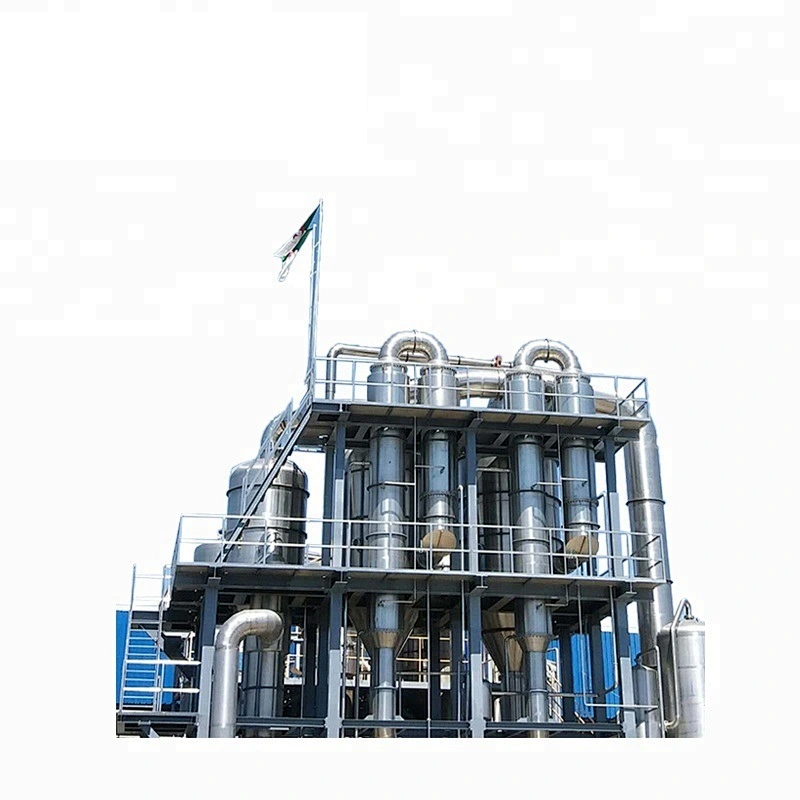

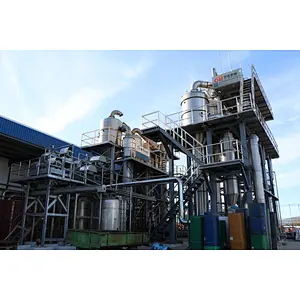

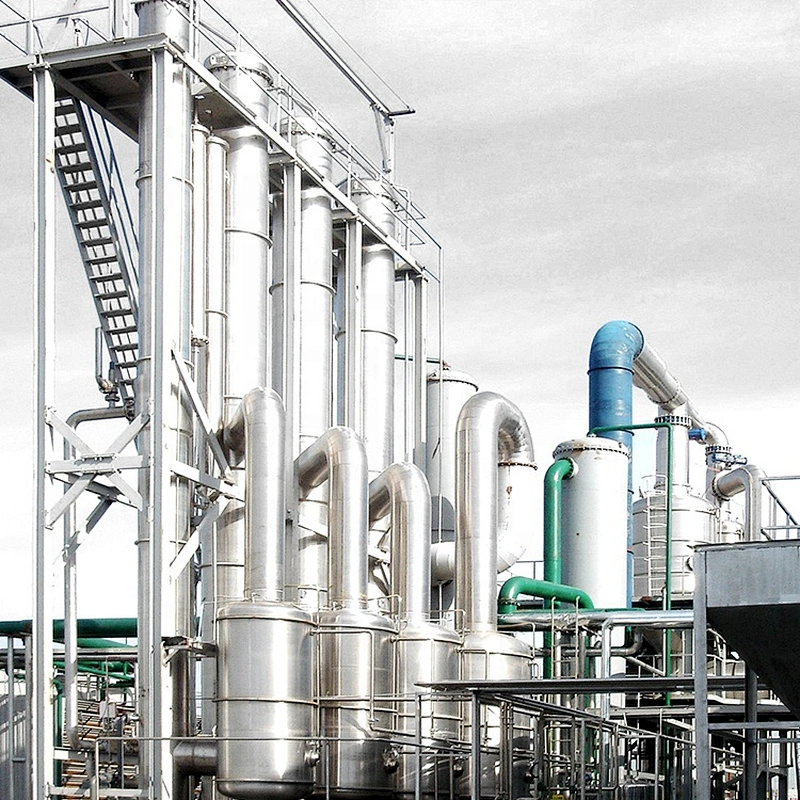

Industrial vacuum chiller juice concentrator evaporator falling rising film

 high efficient tomato paste multiple effect vacuum double effect evaporator

Beverage, fruit and vegetable forced circulation type evaporator

Product name: Forced circulation type evaporator, Model#: CFH1Q1TA

Function:

Forced circulation type single, double, three-effect and multi-effect

Evaporator is suitable for the low temperature concentration of food, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling and other industries of high concentration, high viscosity, insoluble solids. It assembled by multi-effect heater, multi-effect separator, cooling machine, circular pump, vacuum

and drainage system, steam header, operation platform, Electric PLC controller, valves and cables etc.

The advantage of this evaporator:

1.   The whole system is reasonable designed, nice appearance, high stability, high energy saving and low steam consumption

2.   The concentrate rate is big and time is short, the forced circulation could evaporate the high viscosity material.

3.   The special design could achieve the easy operation and able to change the evaporate effect according to different products.

4.   The steam temperature is low, the heat will be used fully and the material could be heated evenly. It applies to concentrate the heat-sensitive material.

5.   The material could be heated evenly through the forced circulation. The coefficient of the heater transfer in the tubular is high enough to avoid the “Dry wall” issue.

6.   The material goes in the separator and be separated again, it enhances the effect of the separation.

7.   The evaporator has the advantage of compact designed, small space occupation and straightforward layout, it represents the trend of the development of the big evaporator.

8.   It could achieve continuous input and discharge materials. It is also able to control the liquid level and concentration according to your requirement.

9.   The evaporated volume could be designed according to your requirement.
