- Applicable Industries:Food & Beverage Factory
- Condition:New
- Place of Origin:CN;JIA
- After-sales Service Provided:Field installation, commissioning and training
- Warranty:1 year
- Brand Name:CFM
- Model Number:CFM-C-02
- Type:homogenizer
- Voltage:220v/380v
- Weight:600kg
- Dimension(L*W*H):1100*900*1850mm
- Certification:CE/ISO9001
- After-sales Service Provided:Engineers available to service machinery overseas

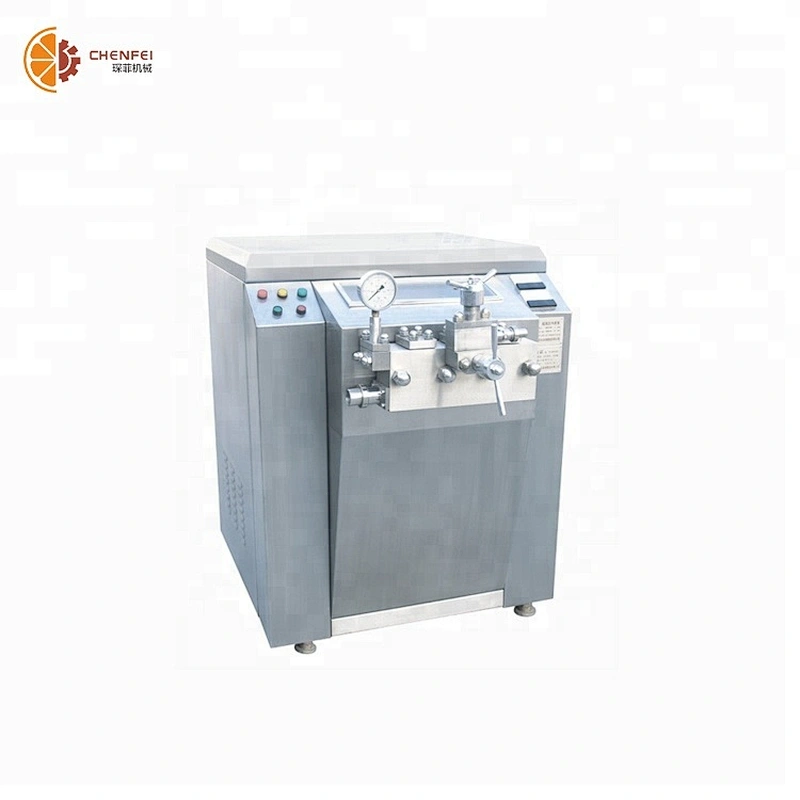

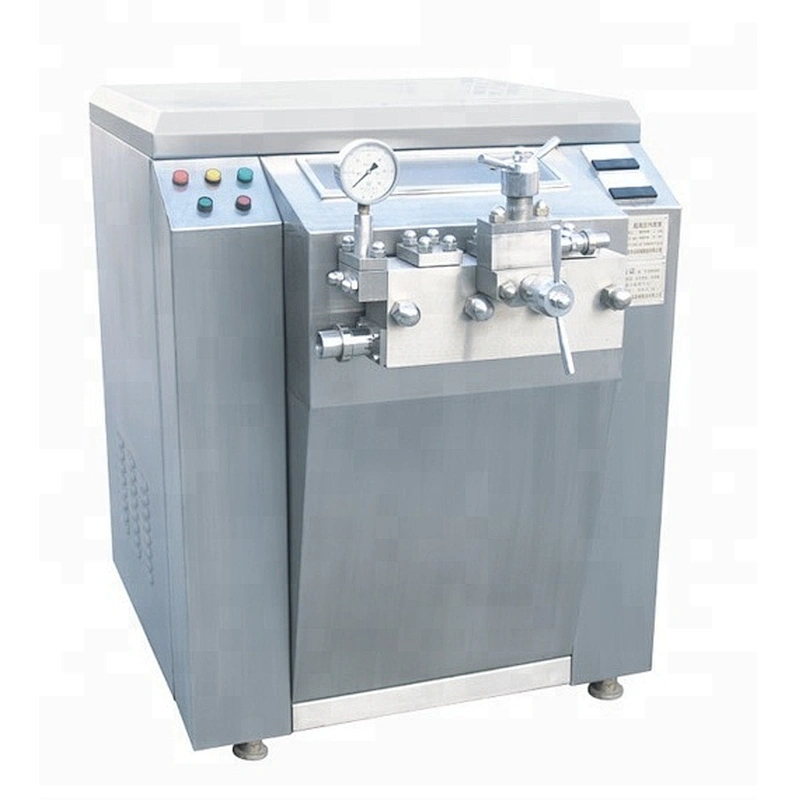

- Name:NFC juice high pressure homogenizer
- Application:Food Industry
- Function:NFC juice
- Material:Stainless Steel
- Usage:Food Industry Equipment
- Item:Industrial Fruit Machine
- Feature:Easy Operation
- Package:Wooden case
- Advantage:Adjustable Blades
Model | Pressure | Diameter of inlet | Diameter of homegenizing | Outlet | Motor power | Dimension | Weigh |
CFM-1-25 | 25 | 25 | 15 | ZG1/2 | 7.5 | 1050*680*1110 | 600 |
CFM-2-25 | 25 | 40 | 15 | ZG1/2 | 15 | 1150*930*1270 | 1000 |
CFM-3-25 | 25 | 50 | 25 | ZG3/4 | 20 | 1250*1000*1350 | 1300 |
CFM-4-25 | 25 | 50 | 25 | ZG3/4 | 23 | 1300*1160*1500 | 1400 |
CFM-5-25 | 25 | 50 | 25 | ZG3/4 | 25 | 1400*1250*1600 | 1500 |
CFM-1-40 | 40 | 25 | 15 | ZG1/2 | 15 | 1050*680*1110 | 1100 |
CFM-2-40 | 40 | 40 | 15 | ZG1/2 | 22 | 1150*820*1180 | 1400 |
CFM-3-40 | 40 | 50 | 25 | ZG3/4 | 30 | 1250*1150*1500 | 1700 |
CFM-4-40 | 40 | 50 | 25 | ZG3/4 | 40 | 1300*1260*1600 | 2000 |
CFM-5-40 | 40 | 50 | 25 | ZG3/4 | 50 | 1400*1360*1700 | 2300 |
CFM-1-60 | 60 | 50 | 25 | ZG3/4 | 22 | 1300*1060*1350 | 1200 |
CFM-2-60 | 60 | 50 | 25 | ZG3/4 | 38 | 1400*1160*1450 | 1500 |
