- After-sales Service Provided:Engineers available to service machinery overseas
- Material:304 Stainless Steel
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:None
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Hot Product 2019
- Warranty of core components:1 Year
- Core Components:Engine
- Core Components:Bearing
- Condition:New
- Place of Origin:CN;JIA
- Brand Name:CFM
- Type:turnkey processing line
- Voltage:220V/380V
- Power:10.9kw
- Weight:2000kg
- Dimension(L*W*H):2500*1200*2200mm
- Certification:CE/ISO9001
- Year:2020
- Warranty:1 Year

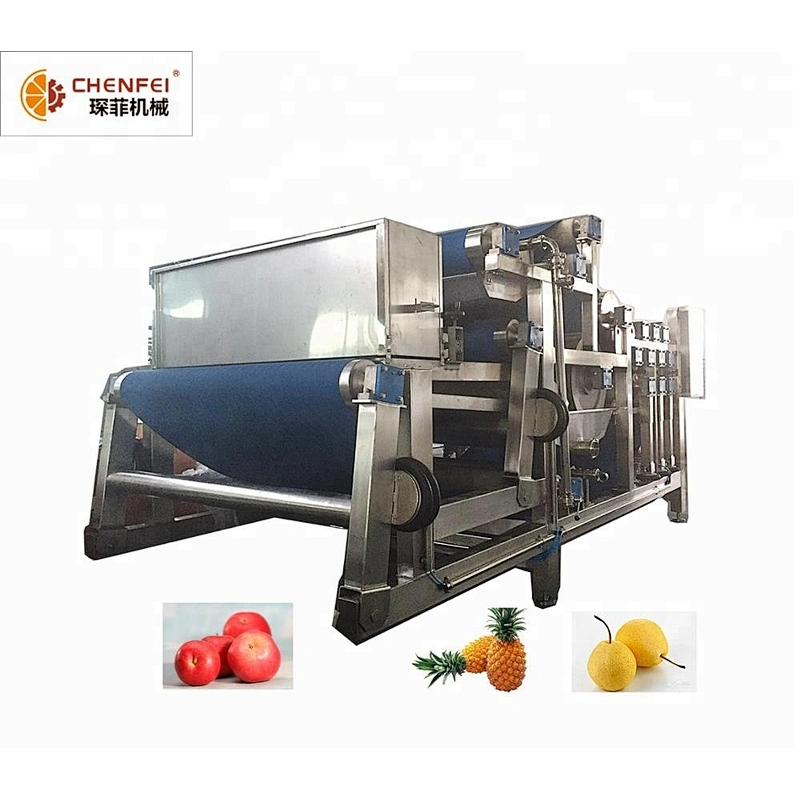

High quality hydraulic juice press machine sugar cane extractor
1. Reducer motor; 2. Upper belt drive roller; 3. Lower belt drive roller; 4. Frame; 5. Filter belt; 6. Pressure roller;
7. Support pressure roller; 8. Correction control valve; 9. Large Supporting pressure rolls;
10. L-shaped squeeze rolls; 11. deflection rolls; 12. juice collecting tank; 13. mesh belt cleaning nozzle;
14.cloth rolls; 15.hopper; 16. tension rolls; 17. Scraper
Main configuration:
1. Main metal materials: stainless steel 304, 316;
Frame: stainless steel 304 material, square tube material is 120 * 80 * 4mm, 80 * 80 * 6mm, 89mm * 4mm round pipe, and 12mm steel plate, beam, etc .;
1. Main non-metallic materials: wear-resistant engineering plastics, butadiene rubber that meet food hygiene requirements.
2. Airbag selected imported Continental.
3. Selection of pressing belt is GDK.
4. Bearings are imported NSK.
5. Deflection valve is German JUP.
6. Main reducer:NORD.
7. All pipes are stainless steel sanitary polished pipes, and the connecting valves are GMP-compliant clamp fast-mounted disc valves.
