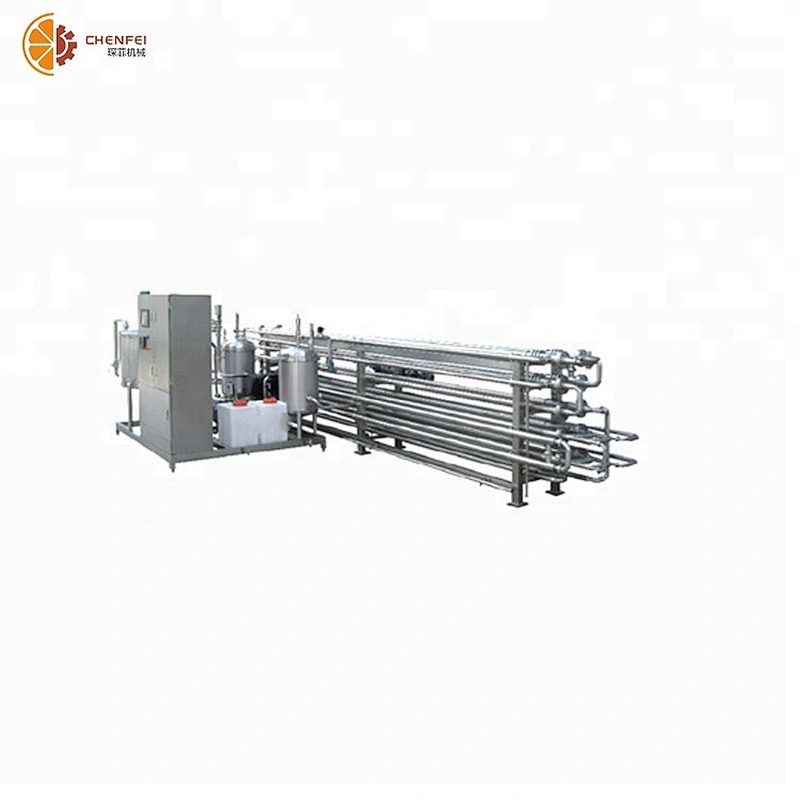

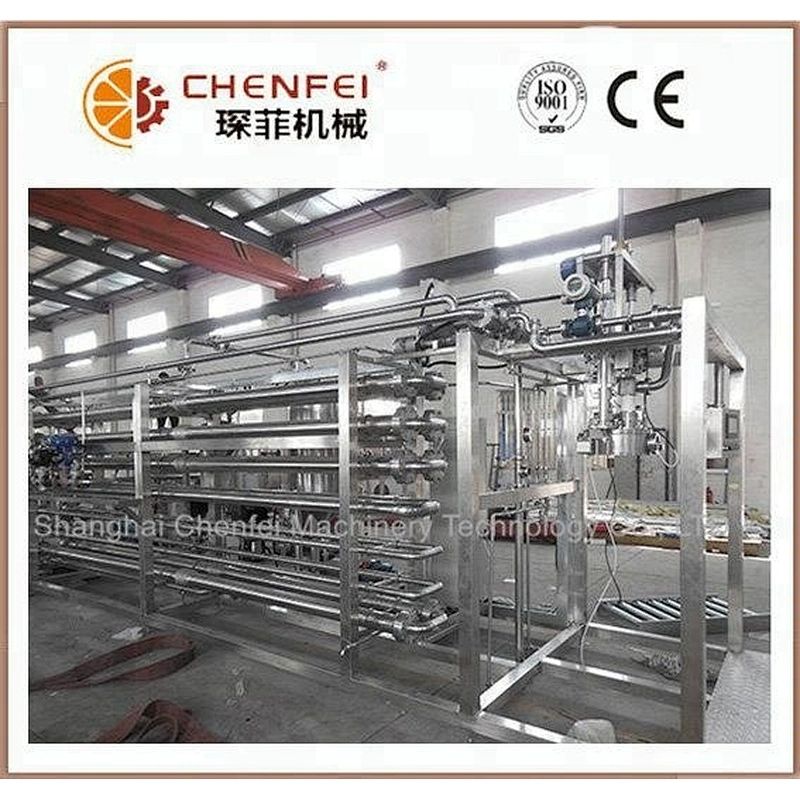

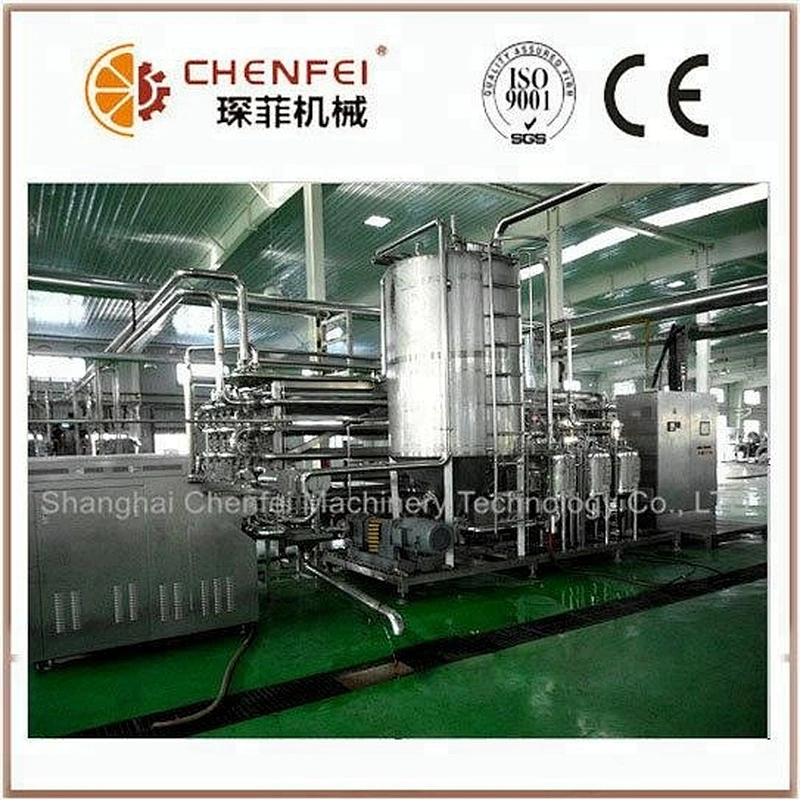

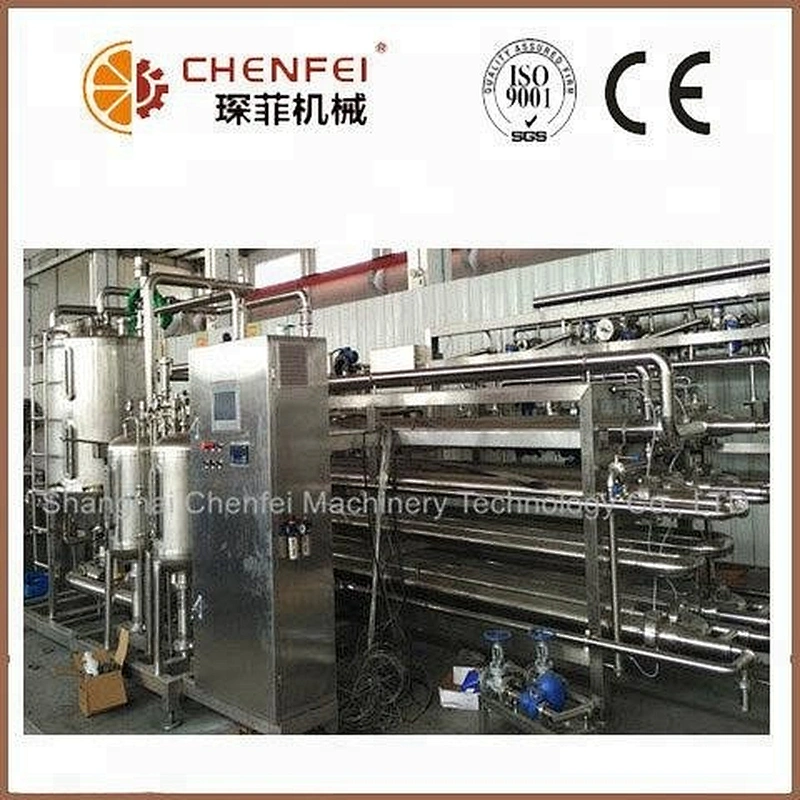

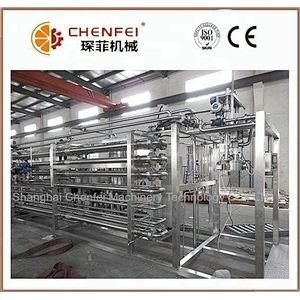

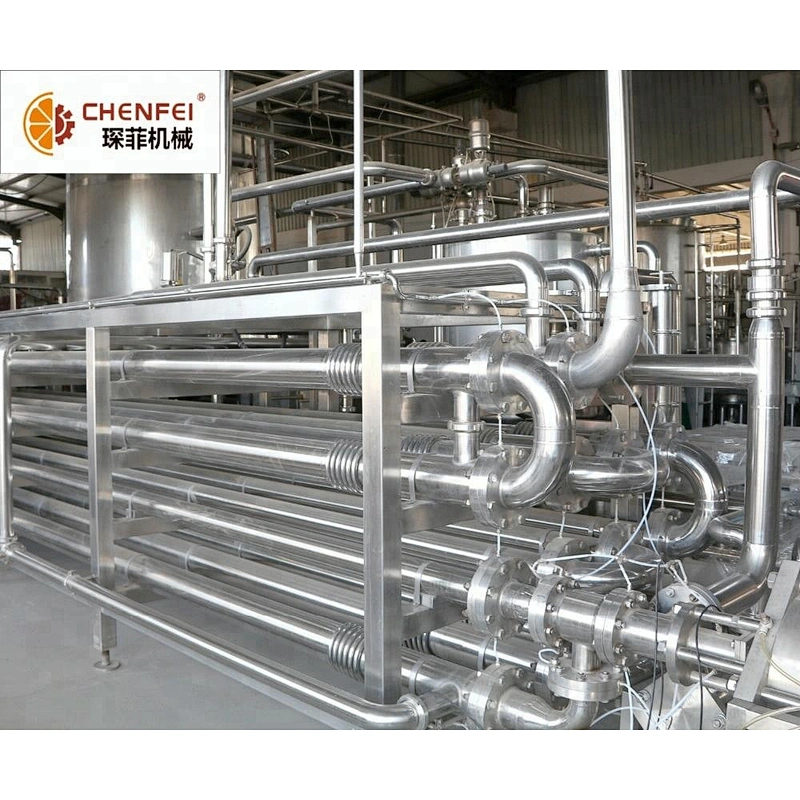

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Tubular milk juice tube in tube pasteurization sterilizer machine

Price:: USD 500.00-10000.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 12 set / Year
Country of Origin: Shanghai

Quantity:

Product Description

Applicable Industries:Food & Beverage Factory
Condition:New
Place of Origin:CN;JIA
After-sales Service Provided:Field installation, commissioning and training
Warranty:1 Year
Brand Name:CFM
Voltage:220V/380V
Power:9kw
Weight:250Kg
Dimension(L*W*H):510*895*990mm
Certification:ISO9001
After-sales Service Provided:Engineers available to service machinery overseas
Material:304 Stainless Steel

Product name:Tubular milk juice tube in tube pasteurization sterilizer machine

Model	CFM-UHT-PP1.5	CFM-UHT-PP3	CFM-UHT-PP5
Capacity(L/H)	1500	3000	5000
Inlet temperature(℃)	25-40℃	25-40℃	25-40℃
Holding Time(s)	120-180	120-180	120-180
Sterilizing temperature(℃)	95-121℃	95-121℃	95-121℃
Outlet temperature(℃)	25-35℃	25-35℃	25-35℃
Cooling water T(℃)	30℃	30℃	30℃
Steam pressure	0.5MPa	0.5MPa	0.5MPa
Steam consumption	`150Kg/h	`210Kg/h	`280Kg/h
Compressed air pressure	0.6MPa	0.6MPa	0.6MPa
Compressed air consumption	50L/H	50L/H	60L/H
