- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Condition:New
- Place of Origin:CN;JIA
- After-sales Service Provided:Field installation, commissioning and training
- Warranty:1 Year
- Brand Name:CFM
- Voltage:220v/380v
- Power:9kw
- Weight:400kg
- Dimension(L*W*H):1200*800*1430mm
- Certification:ISO9001
- After-sales Service Provided:Engineers available to service machinery overseas
- Material:304 Stainless Steel

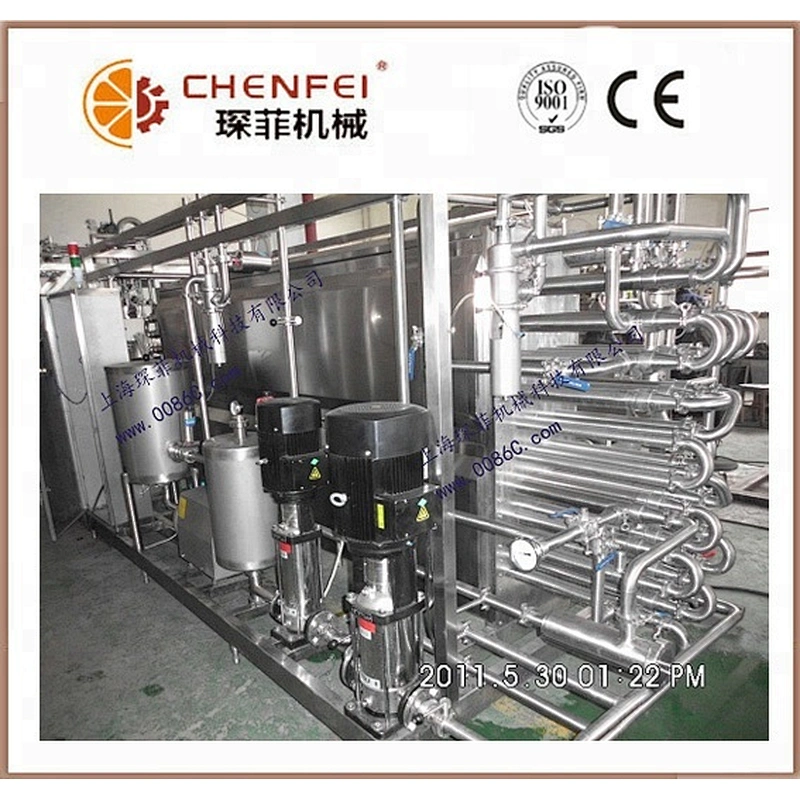

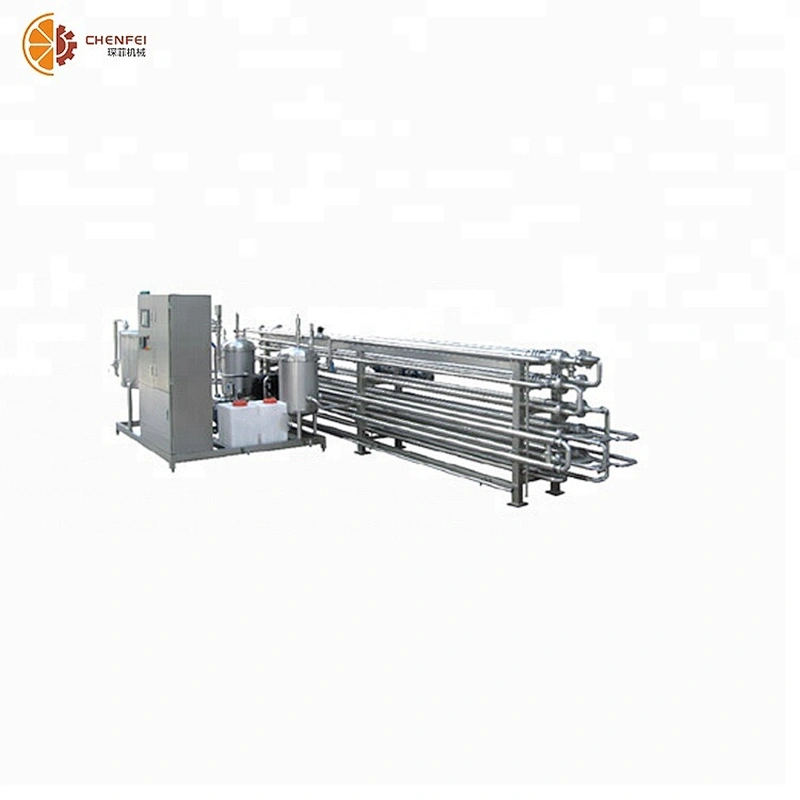

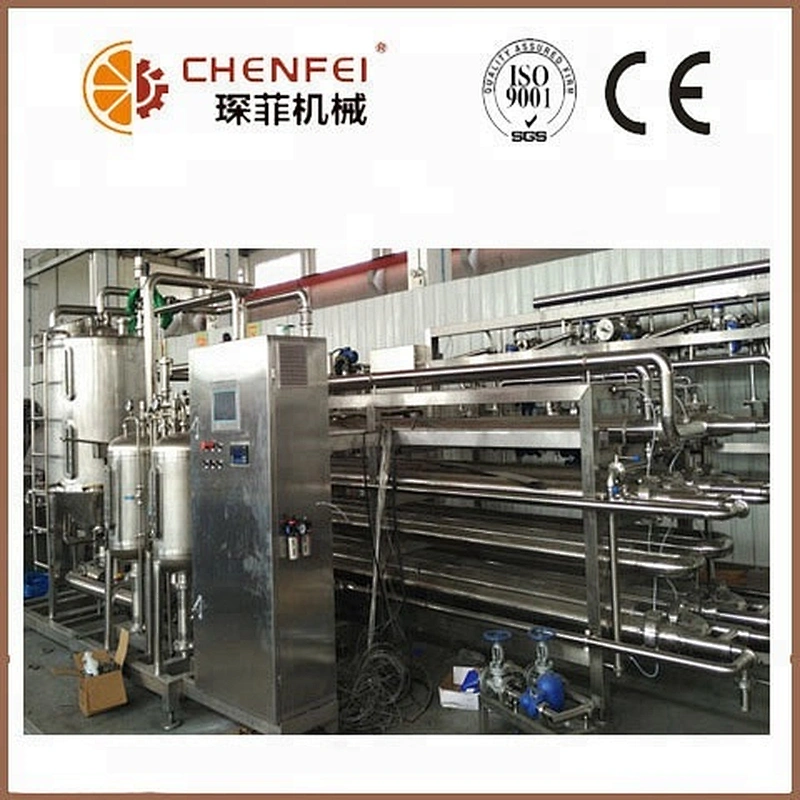

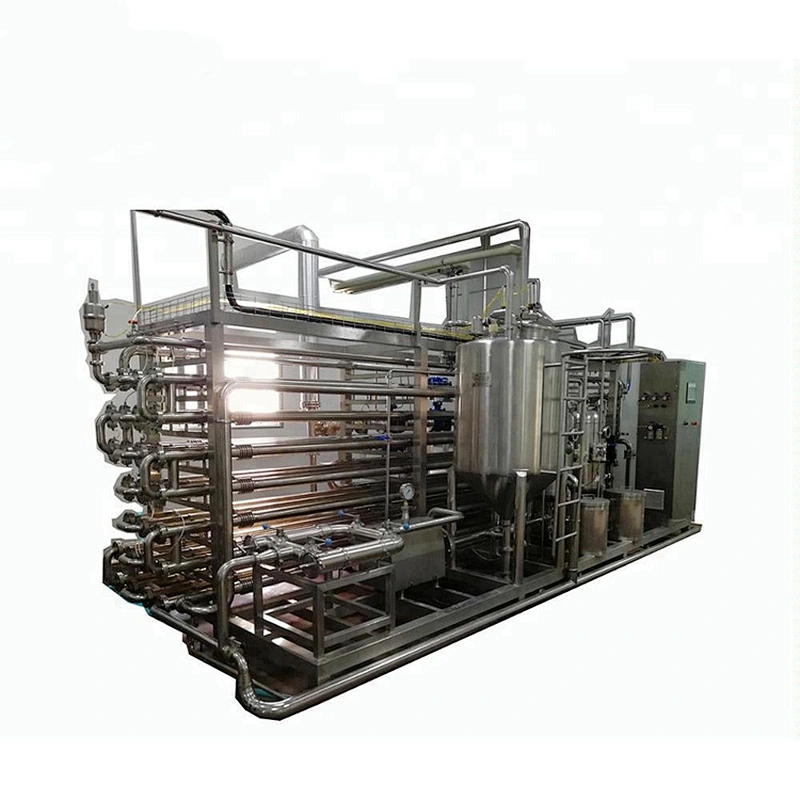

- Product name:Tube in tube uht sterilizer food sterilization
- Capacity:according to the customer's requirement
- Processing:sterilizer
- Type:Tube in tube uht sterilizer
- Item:Sterilization machine
- Sterilization Temperature:custom made
- Model:CFM-A-009
- Feature:Fast sterilization
Model | CFM-UHT-PP1.5 | CFM-UHT-PP3 | CFM-UHT-PP5 |
Capacity(L/H) | 1500 | 3000 | 5000 |
Inlet temperature(℃) | 25-40℃ | 25-40℃ | 25-40℃ |
Holding Time(s) | 120-180 | 120-180 | 120-180 |
Sterilizing temperature(℃) | 95-121℃ | 95-121℃ | 95-121℃ |
Outlet temperature(℃) | 25-35℃ | 25-35℃ | 25-35℃ |
Cooling water T(℃) | 30℃ | 30℃ | 30℃ |
Steam pressure | 0.5MPa | 0.5MPa | 0.5MPa |
Steam consumption | `150Kg/h | `210Kg/h | `280Kg/h |
Compressed air pressure | 0.6MPa | 0.6MPa | 0.6MPa |
Compressed air consumption | 50L/H | 50L/H | 60L/H |
machine size(LxWxH) | 7000x2000x2000 | 7000x2000x2000 | 7000x2000x2000 |
Weight | 1700kg | 2000kg | 2200kg |
