- Standard or Nonstandard::Standard
- Connection:Weld
- Handle:Pulling handle
- Body material:SS304/ss316L
- Function:flow rate control
- Surface treatment:CNC machined Ra<0.8μm
- Application:General
- Temperature of Media:High Temperature
- Temperature of Media:Low Temperature
- Temperature of Media:Medium Temperature
- Temperature of Media:Normal Temperature
- Power:Manual
- Media:Water
- Structure:BUTTERFLY
- Place of Origin:CN
- Port Size:DN10-DN300, 1/2"-12"

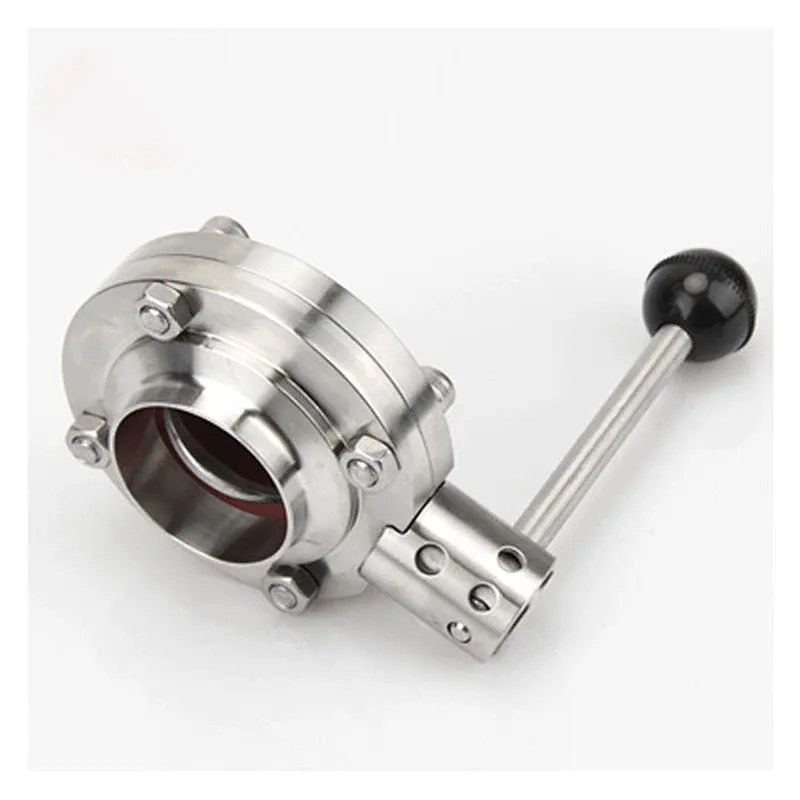

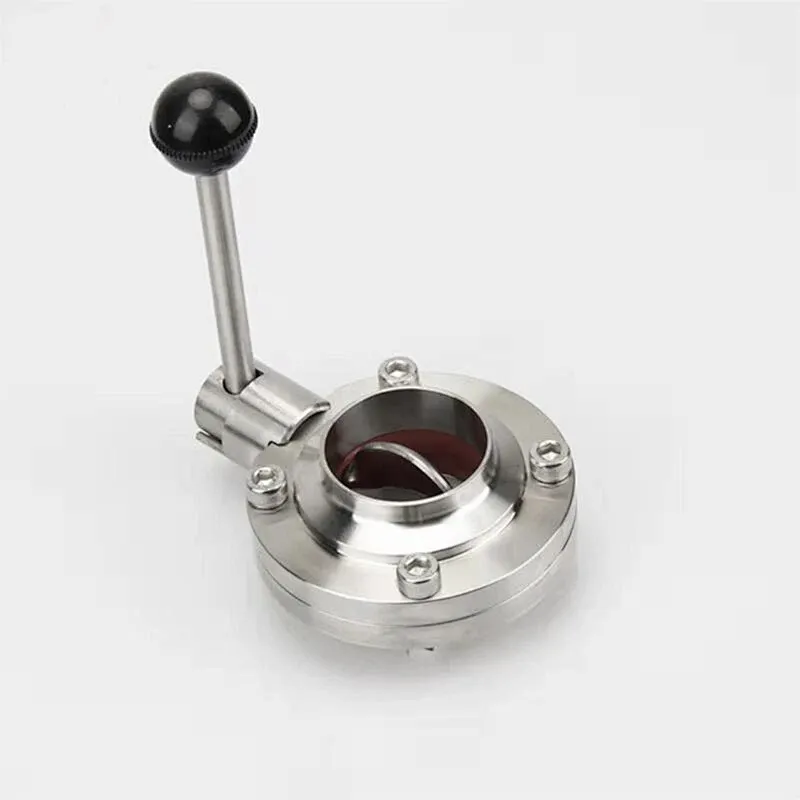

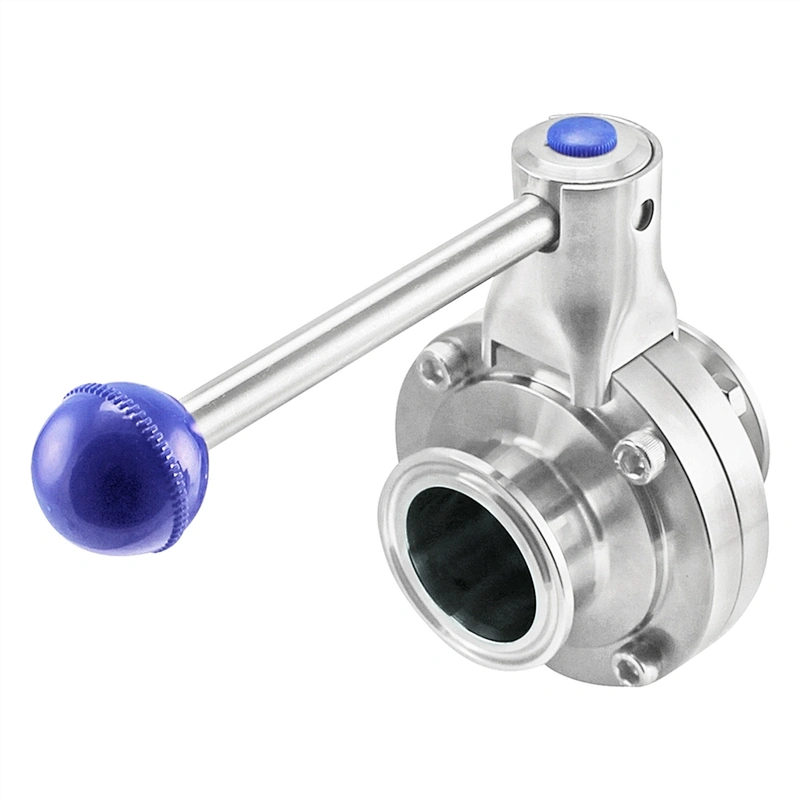

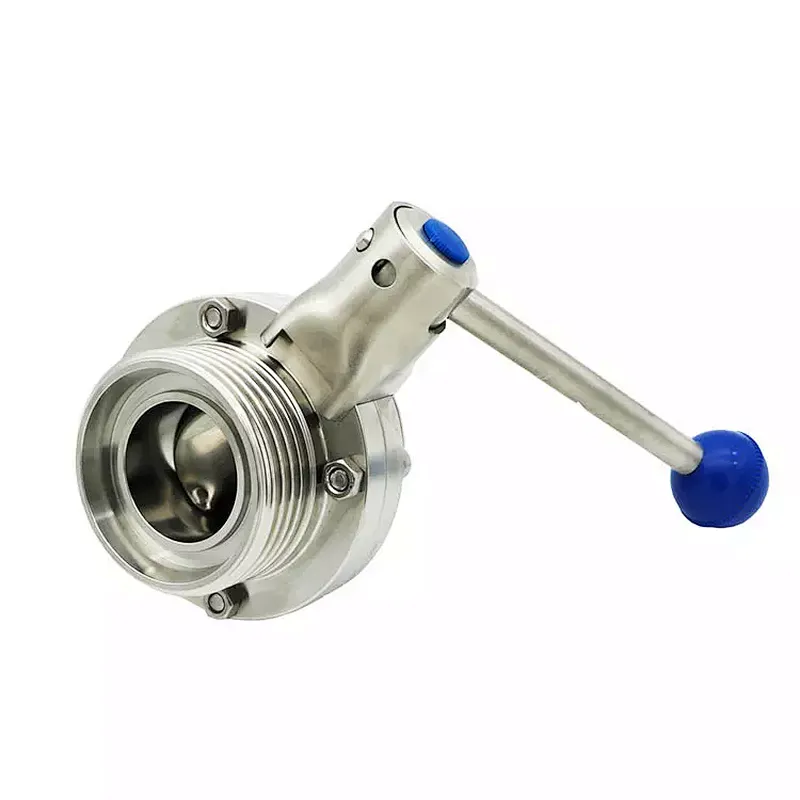

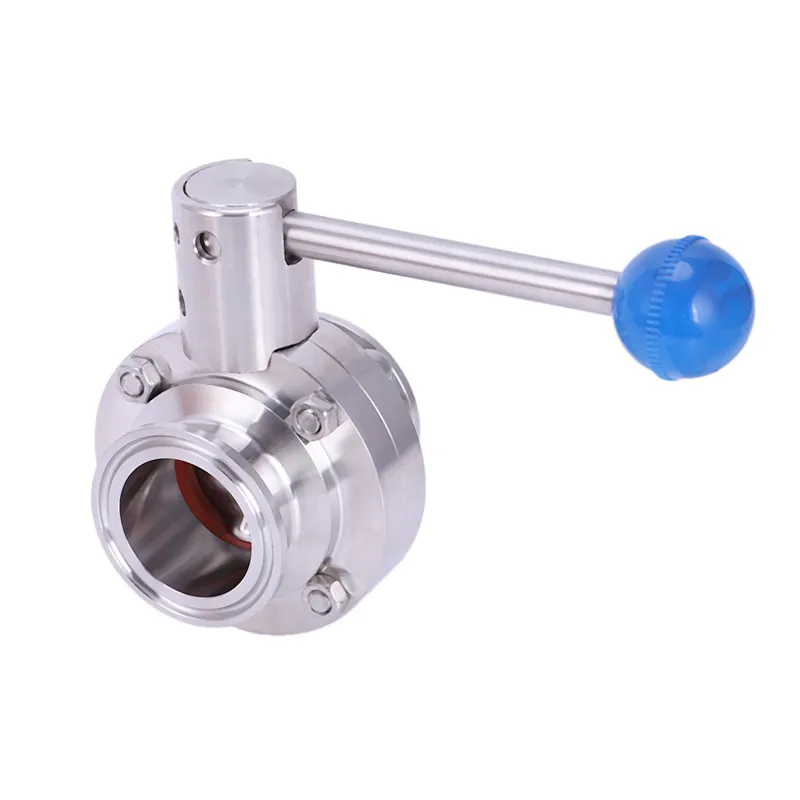

Stainless steel mixing proof butterfly valve with pull handle
Product Description
Sanitary manual operated butterfly valve, used in stainless steel pipe system, widely used in beer, beverage, fruit juice, pharmaceutical engineering and other fields.
Technical Data
Size : 1”~4”, DN25 ~ DN200
Max.Product Pressure: 1000 Kpa (10 bar)
Min. Product Pressure: Vacuum
Temperature Range: -10℃ ~ +95℃
Material
Material: SUS304, SUS 316L, AISI 304, AISI 316L
Rubber Grade: Silicone (Q), EPDM, FPM
Valve Disc Bush: PVDE
Internal Surface Finish: Ra 0.4μm-0.8μm
External Surface Finish: Semi-bright
