- Structure:centrifugal Pump
- Flow:1-200m3/h
- Usage:transferring liquid
- Speed:2900RPM
- Application:Developing World Water Solutions
- Application:Drinking water treatment
- Application:Food and Beverage Industry
- Application:Water Treatment Solutions
- Power Source:Electric
- Structure:Single-stage Pump
- Certification:ce
- Place of Origin:CN
- Horsepower:0.75-55kw
- Pressure:8.5
- Outlet Size:38-52
- Voltage:380
- Power:380

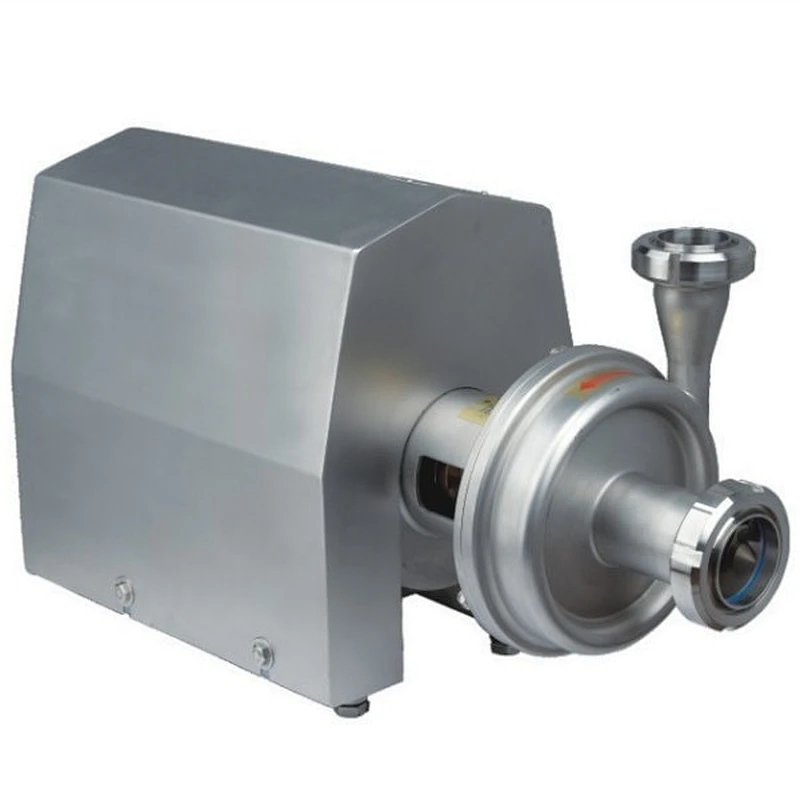

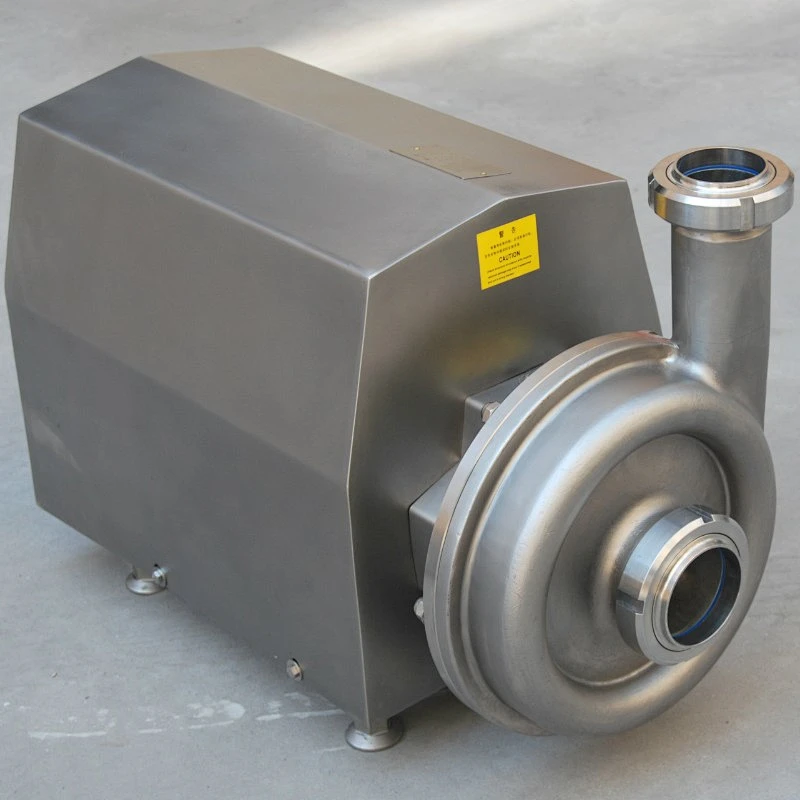

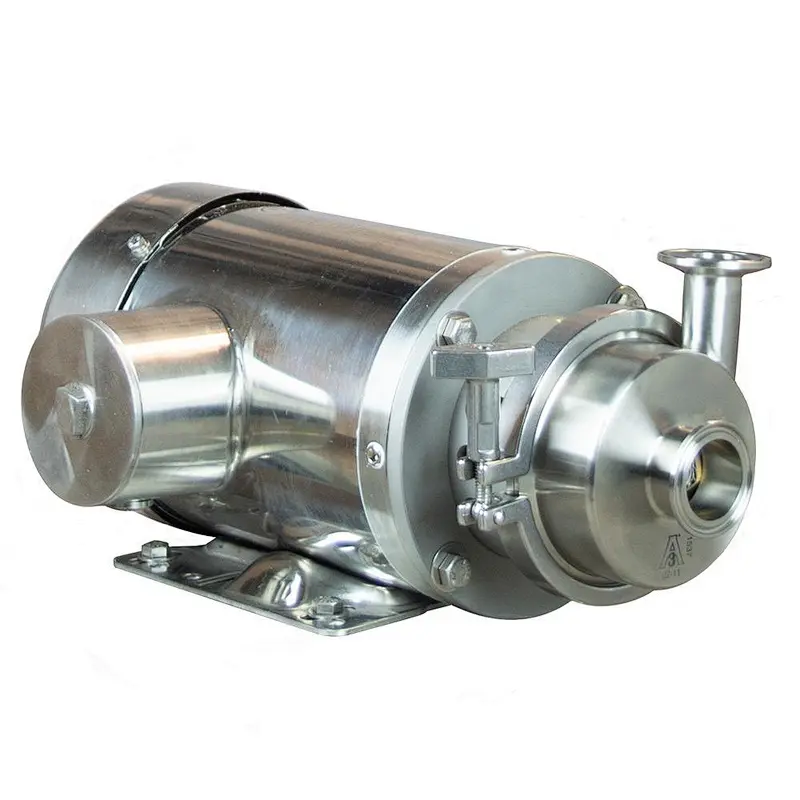

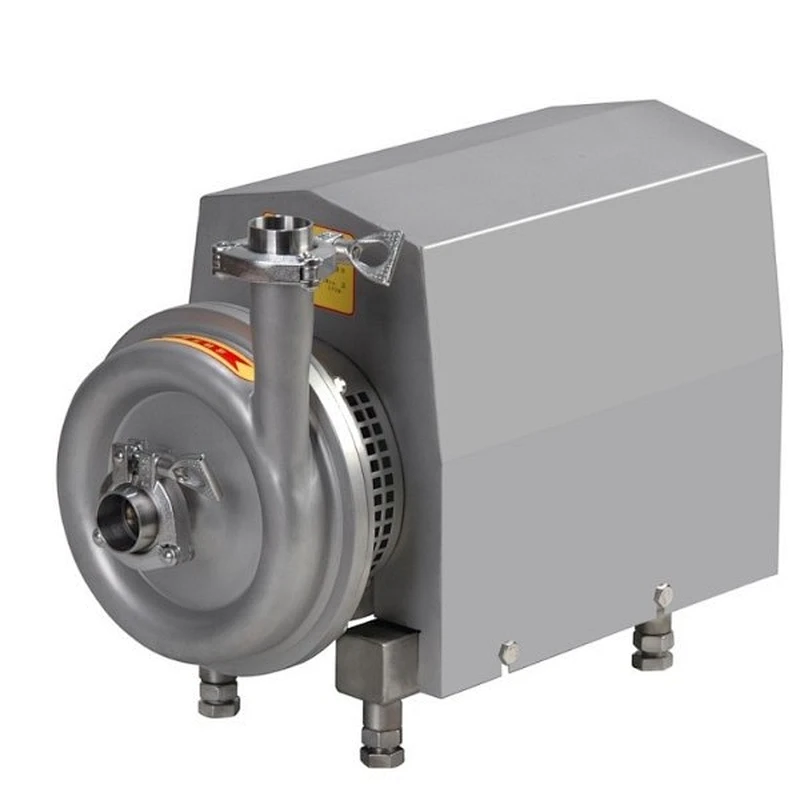

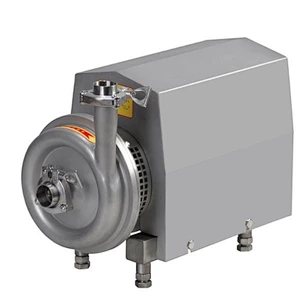

Stainless Steel 304 Electric Motor Irrigation Centrifugal Pump
Product Description
Material: SUS304, SUS316L, AISI 304, AISI 316L
Seal: Mechanical Seal
Connections: Male, Flange, Clamp
| Model | Rotating Speed (R / min) | Flow Rate | Head (M) | Power (kw) | Impeller Diameter (mm) | |
| (m3 / h) | (L / S) | Motor Power | ||||
| YKH-2 | 15 | 4.2 | 40 | 4 | 180 | |
| 20 | 5.6 | 36 | 4.5 | |||
| 25 | 6.9 | 32 | 4.5 | |||
| YKH-6 | 15 | 4.2 | 32 | 4 | 165 | |
| 30 | 8.3 | 30 | 5.5 | |||
| 35 | 9.7 | 28 | 5.5 | |||
| YKH-5 | 15 | 4.2 | 66 | 11 | 220 | |
| 25 | 6.9 | 60 | 11 | |||
| 30 | 8.3 | 55 | 11 | |||
| YKH-3 | 2900 | 40 | 11.1 | 50 | 11 | 205 |
| 60 | 16.7 | 43 | 15 | |||
| 80 | 22.2 | 36 | 15 | |||
