- Applicable Industries:Food & Beverage Factory
- Condition:New
- Place of Origin:CN;JIA
- After-sales Service Provided:Field installation, commissioning and training
- Warranty:1 year
- Brand Name:CFM
- Model Number:CFM-03
- Type:Filler serises
- Voltage:220V / 380V
- Power:50KW
- Weight:250KG
- Dimension(L*W*H):2500*3000*2500
- Certification:ISO9001
- After-sales Service Provided:Engineers available to service machinery overseas

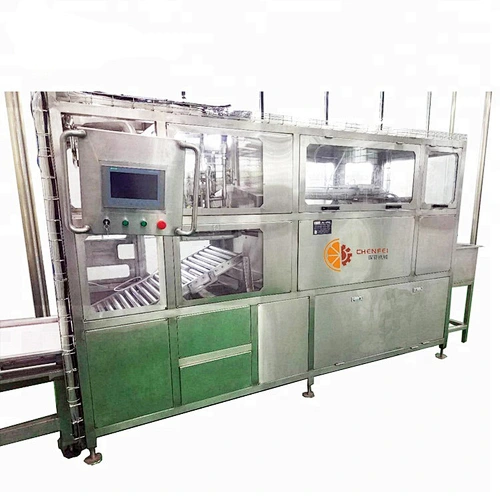

- Product name:BIB filling machine
- Application:Juice and jam
- Capacity:6000 KG/H
- Material:304 Stainless Steel
Product Description

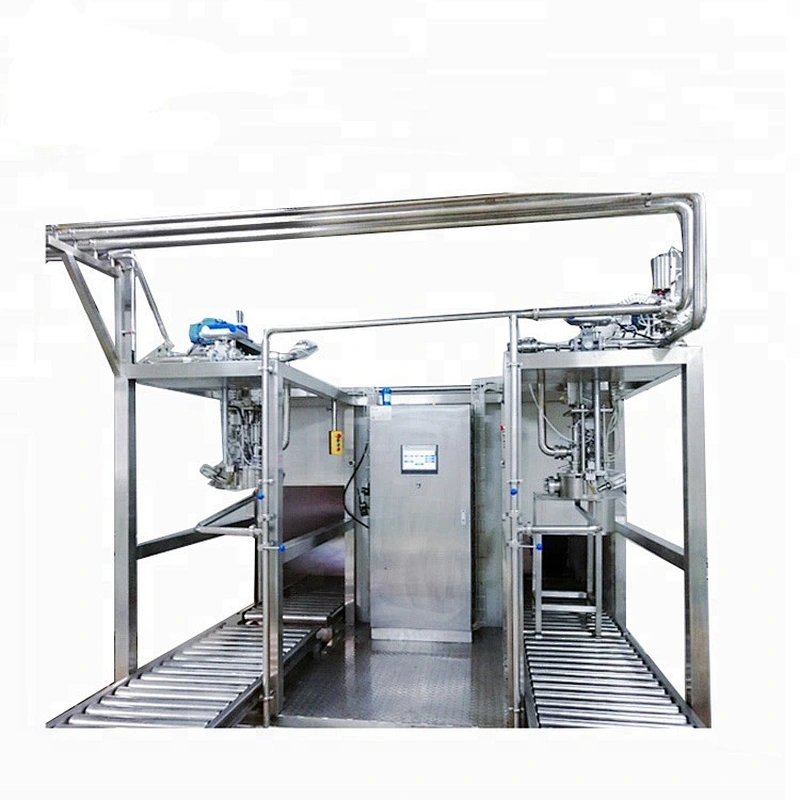

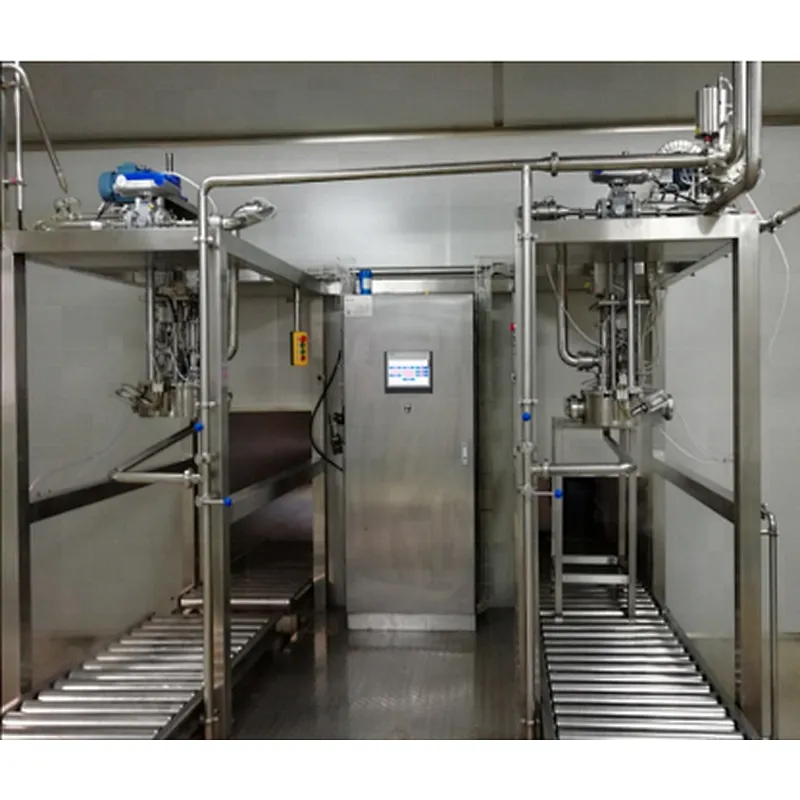

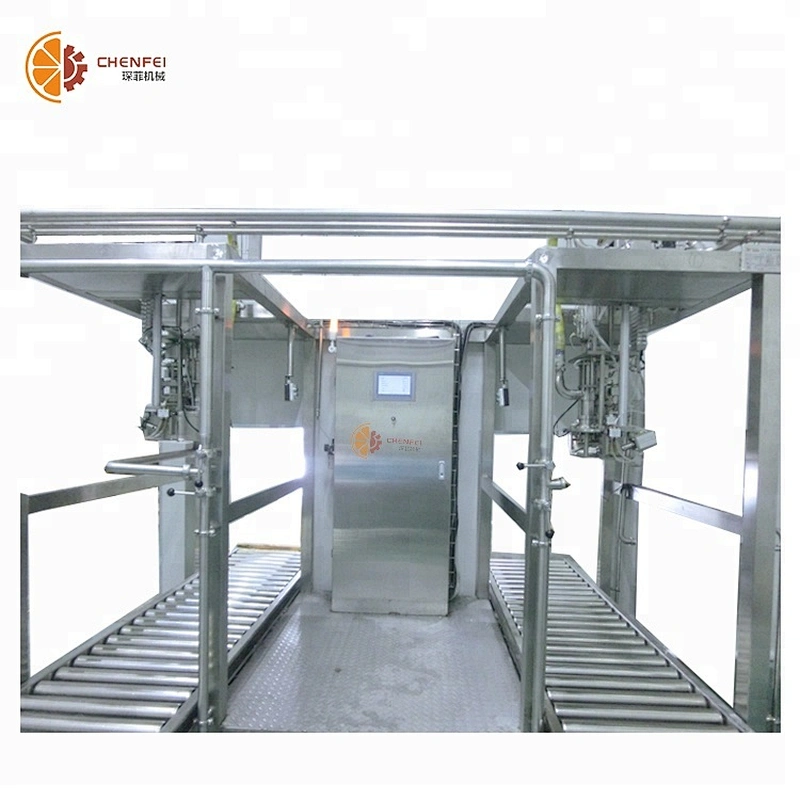

Product name:Double - head BIB aseptic fruit juice and paste filling machine
| Filling flow | 6 T/H |
| Filling accuracy | Filling volume ±0.5% |
| Bagging standard | 25 L 1 inch opening bag |
| Filling capacity | 220-240 bags/hour |
| Compressed air | 6-8 bar 1.5m³/h |
| Steam supply pressure | ≥3 bar |
| Steam consumption | 40KG/H |
| Capacity | 0.5KW, 220VAC, 50HZ |
| Compressed air pressure | 0.8MPa |
| Compressed air consumption | 70m³/Hr |
