- Application:Fruit Processing
- Sterilization Temp.:85-135℃
- Sterilizing Time:4-20s
- Raw Material:SUS304 Stainless Steel
- Package:Plastic Film And Wooden Case
- PLC:Siemens
- steam valve:spirax
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- After Warranty Service:Video technical support
- Local Service Location:Egypt
- Local Service Location:Canada
- Local Service Location:Turkey
- Local Service Location:United Kingdom
- Showroom Location:Canada
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:Italy
- Showroom Location:France
- Showroom Location:Germany
- Showroom Location:Viet Nam
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:UAE
- Showroom Location:Ukraine
- Showroom Location:Nigeria
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Hot Product 2019
- Warranty of core components:1 Year
- Core Components:PLC
- Core Components:Bearing
- Core Components:Motor
- Core Components:Pump
- Condition:New
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- Place of Origin:Chine
- Brand Name:CFM
- Type:Other
- Voltage:220v/380v
- Power:9kw
- Weight:1000kg
- Dimension(L*W*H):5600x1700x2300mm
- Certification:CE/ISO9001
- Year:2019

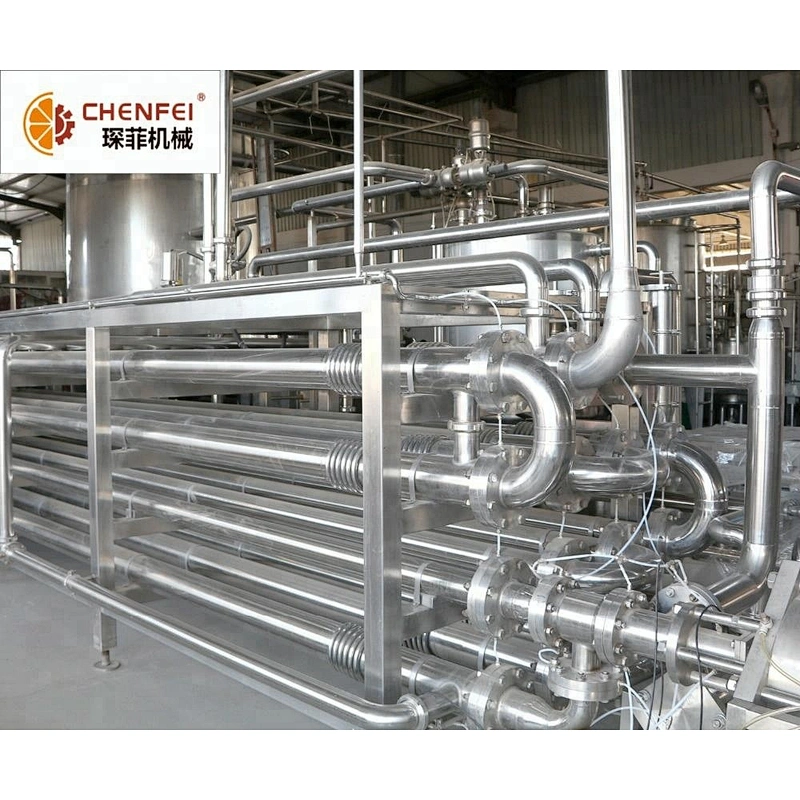

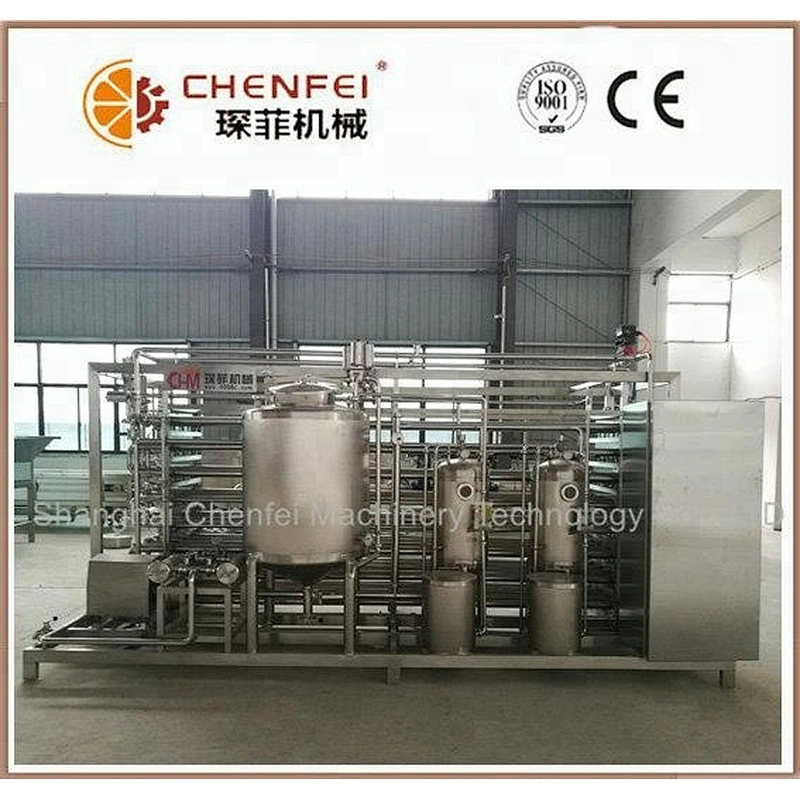

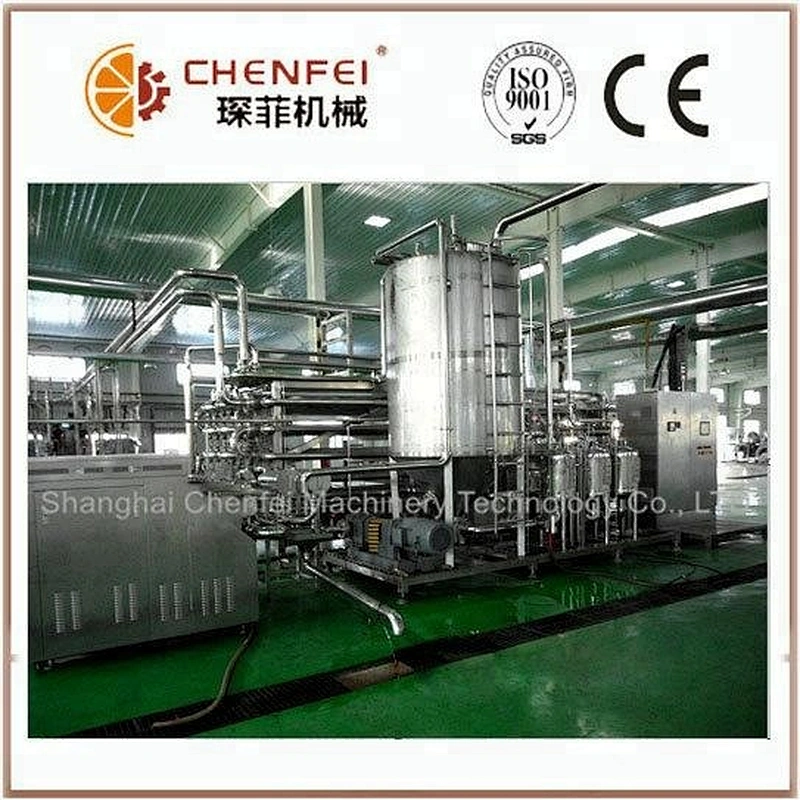

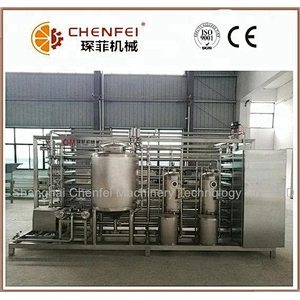

Tubular sterilizer
The sterilizing machine is vital important part of our manufacturing of fruit juice& jam processing machines from raw fruit elevator to sterilized juice&jam aseptic bag filling machine,including elevator, washing sorter, pre-heater, crusher, pulping machine, extractor, evaporator, sterilizer, manual and automatic aspetic bag juice or jam filling machine.
Our sterilizer is sophisticated in technolagy for our engineer's devotion and welder's hard work and the accumulation of years of experience.
Our tubular UHT sterilizer is mainly applied for fruit juice while our tube in tube sterilizer for fruit jam or pulp in high intensity . when the viscosity is 0-3000cp, the tubular is chosen. When the viscosity is ≥3000cp, the tube in tume is adopted.
Features
hige precision:≤±0.1
no sanatory dead corner
one-key operation, run automatically
Regenerative heat exchange technology is adopted, saving energy
Type: Tubular, tube in tube and tunnel sterilizer, maded in our factory
Usage: fruit plant, beverage plant, pharmacy, milk plant, etc.

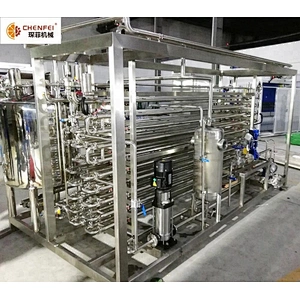

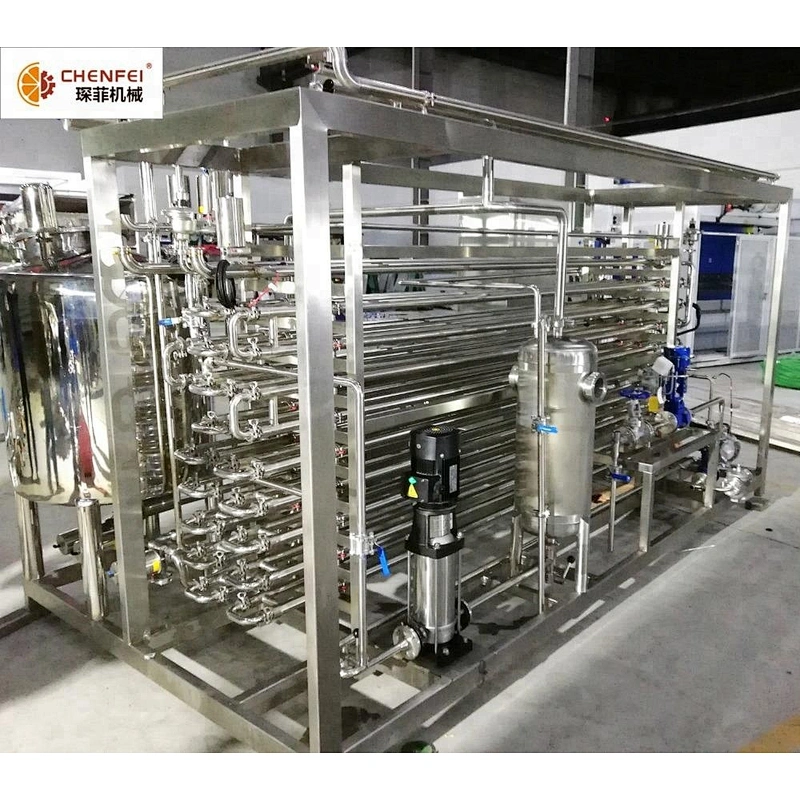

Product name:SS304 Tube in Tube Sterilizer for Juice and Jam
Model | CFM-UHT-PP1.5 |
Capacity(L/H) | 1500 |
Inlet temperature(℃) | 25-40℃ |
Holding Time(s) | 120-180 |
Sterilizing temperature(℃) | 95-121℃ |
Outlet temperature(℃) | 25-35℃ |
Cooling water T(℃) | 30℃ |
Steam pressure | 0.5MPa |
Steam consumption | `150Kg/h |
Compressed air pressure | 0.6MPa |
Compressed air consumption | 50L/H |

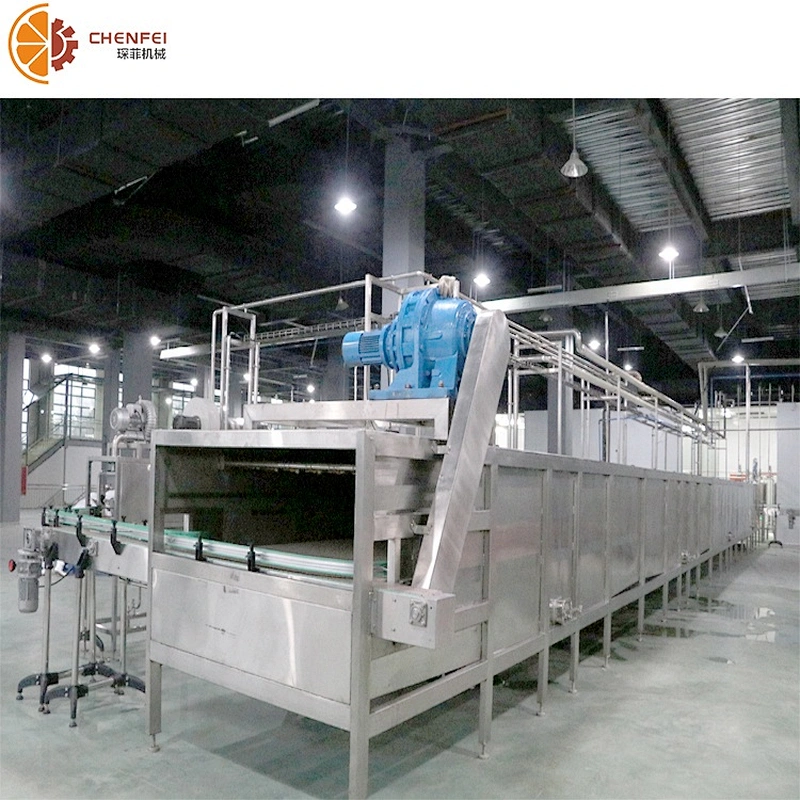

The following is spray tunnel sterilizer
Complete automatic mango production line
Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of mango processing production line are basically imported or domestic first-line brands: so the quality and equipment stability are relatively high, and the service of Philippine mechanical after-sales has always been better in the industry.
Tropical fruit production lines such as mango and pineapple include bubbling cleaning, fruit inspection, brush cleaning, peeling and denucleation, beating, crushing, belt juice extraction, separation, concentration equipment, UHT sterilization and aseptic bag filling. Equipment composition. The entire production line and related equipment are designed for tropical fruit juices such as mango and pineapple according to international quality standards.
