- Application:Food Processing
- Function:Fruit juice,pulp and jam for liquid food aseptic packaging
- Filling Flow:60-6000L/H
- Filling Head:Double Head
- Raw Material:SUS304 or SUS316L
- Package:Plastic Film And Wooden Case
- PCL:Siemens
- Pneumatic cylinder:Festo
- Precision:≤2.5‰
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- After Warranty Service:Video technical support
- Local Service Location:Canada
- Local Service Location:Turkey
- Local Service Location:Mexico
- Local Service Location:Australia
- Showroom Location:Canada
- Showroom Location:United Kingdom
- Showroom Location:Germany
- Showroom Location:Colombia
- Showroom Location:Bangladesh
- Showroom Location:South Africa
- Showroom Location:Ukraine
- Showroom Location:Uzbekistan
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Hot Product 2019
- Warranty of core components:1 Year
- Core Components:PLC
- Core Components:Engine
- Core Components:Bearing
- Core Components:Motor
- Core Components:Pump
- Condition:New
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- Place of Origin:Chine
- Brand Name:CFM
- Type:Other
- Voltage:220v/380v
- Power:1.1kw
- Weight:Customized
- Dimension(L*W*H):Customized
- Certification:CE/ISO9001
- Year:2019

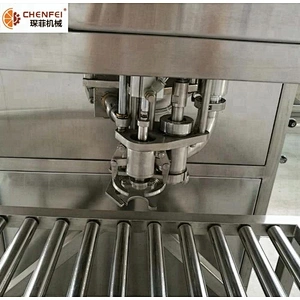

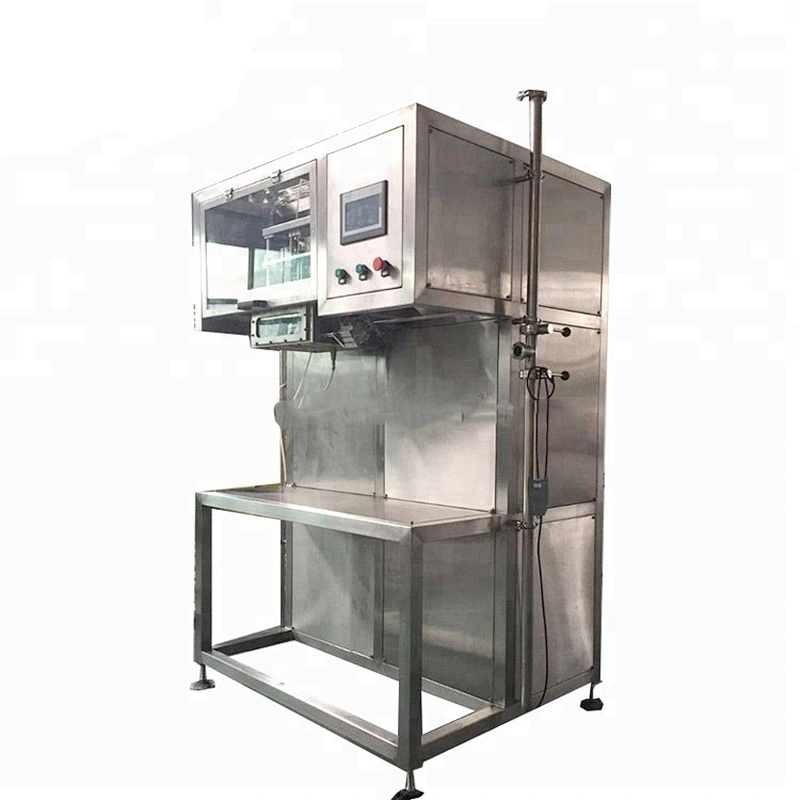

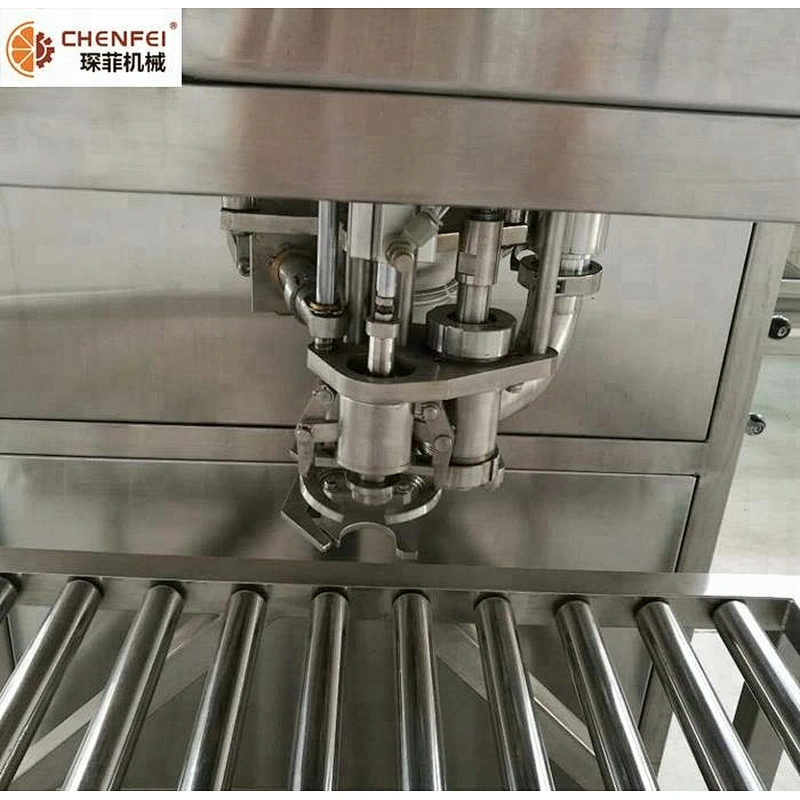

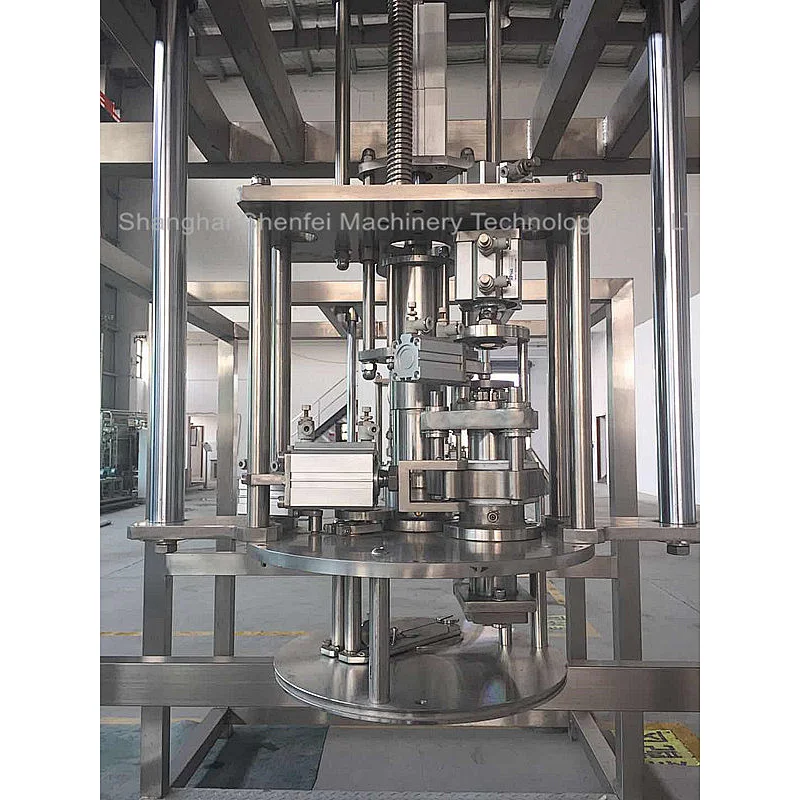

Aseptic bag BIB filler
Aseptic bag filler is one typical representive of our manufacturing of fruit juice& jam processing machines from raw fruit elevator to sterilized juice&jam aseptic bag filling machine,including elevator, washing sorter, pre-heater, crusher, pulping machine, extractor, evaporator, sterilizer, manual and automatic aspetic bag juice or jam filling machine. All listed machines are made in our Chenfei 2000m² factory.
Aseptic bag filler is our fist product. Chenfei made 3 types of bag on valve filler, no asetic bag manual filler, sami-automatic singlefiller filler, semi-automatic double heads filler, full automatic filler.
Features:
1 measure deviation≤2.5‰

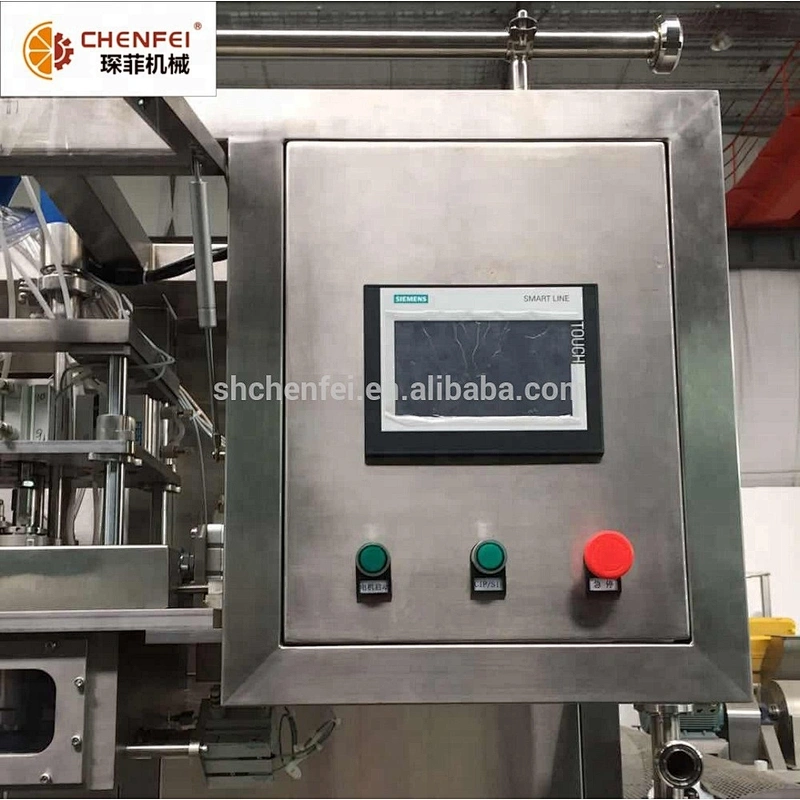

2 high configuration: PLC(siemens), Flowmeter(E+H), Pneumatic(Festo), Touch screen(Siemens)
3 convenient to operate
Usage: food, beverage,wine, and pharmacy industry liquid bag on valve BiB filling
Renge of filling for bag on valve: 1-220L
Product name:Aseptic Bag Filling Machine
| Filling flow | 6 T/H |
| Filling accuracy | Filling volume ±0.5% |
| Bagging standard | 2L 1 inch opening bag |
| Filling capacity | 340-400 bags/hour |
| Compressed air | 6-8 bar 1.5m³/h |
| Steam supply pressure | ≥3 bar |
| Steam consumption | 40KG/H |
| Capacity | 0.5KW, 220VAC, 50HZ |
| Compressed air pressure | 0.8MPa |
| Compressed air consumption | 70m³/Hr |
The following is the tubular sterilizer in fruit processing line
Shanghai Chenfei Machinery Technology Co., Ltd is a professional enterprise which is focus on manufacturing the healthy food processing machine, we have our own factory which is around 20000 m2. We provide full service of integrating technical developing, R & D, manufacturing, installation debugging and training for the turnkey production line for different NFC fruit and vegetable juice, fruit jam and powder, dairy product, protein beverage, tea drink, function beverage, preserved fruit, fruit wine and vinegar, enzyme products, probiotics and some other liquid & solid product. Chenfei provides the overall solutions for the green healthy food processing machinery area and makes our contribution to create the green quality life.
