- Application:Fruit Processing
- Sterilization Temp.:85-135℃
- Sterilizing Time:4-20s
- Raw Material:SUS304 Stainless Steel
- Package:Plastic Film And Wooden Case
- PLC:Siemens
- steam valve:spirax
- temperature sensor:honeywell
- precision:≤±0.1
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- After Warranty Service:Video technical support
- Local Service Location:Egypt
- Local Service Location:Canada
- Local Service Location:Turkey
- Local Service Location:United Kingdom
- Showroom Location:Canada
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:Italy
- Showroom Location:France
- Showroom Location:Germany
- Showroom Location:Viet Nam
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:UAE
- Showroom Location:Ukraine
- Showroom Location:Nigeria
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Hot Product 2019
- Warranty of core components:1 Year
- Core Components:PLC
- Core Components:Bearing
- Core Components:Motor
- Core Components:Pump
- Condition:New
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- Place of Origin:Chine
- Brand Name:CFM
- Type:Other
- Voltage:220v/380v
- Power:9kw
- Weight:1000kg
- Dimension(L*W*H):5600x1700x2300mm
- Certification:CE/ISO9001
- Year:2019
Tubular sterilizer
The sterilizing machine is vital important part of our manufacturing of fruit juice& jam processing machines from raw fruit elevator to sterilized juice&jam aseptic bag filling machine,including elevator, washing sorter, pre-heater, crusher, pulping machine, extractor, evaporator, sterilizer, manual and automatic aspetic bag juice or jam filling machine.
Chenfei sterilizer is characteristcs of high precisiton(≤±0.1℃) and high configuation( steam valve: Spirax; temperature sensor: Honeywell )
Chenfei have made three type of sterilizer--tubular, tube in tube and tunnel sterilizer. The tubular UHT sterilizer is for liquit material like juice or jam in low viscosity (≤3000cp) while the tube in tube for high viscosity (≥3000cp). the tunnel sterilzer is made for after package aseptic industry
Features
-hige precision:≤±0.1℃
-no sanitory dead corner
-one-key operation, run automatically
-regenerative heat exchange technology is adopted, saving energy
Type: Tubular, tube in tube and tunnel sterilizer, all maded in our factory
Usage: fruit plant, beverage plant, pharmacy, milk plant, etc.
Product name:SS304 Tube in Tube Sterilizer for Juice and Jam
Model | CFM-UHT-PP3 |
Capacity(L/H) | 3000 |
Inlet temperature(℃) | 25-40℃ |
Holding Time(s) | 120-180 |
Sterilizing temperature(℃) | 95-121℃ |
Outlet temperature(℃) | 25-35℃ |
Cooling water T(℃) | 30℃ |
Steam pressure | 0.5MPa |
Steam consumption | `210Kg/h |
Compressed air pressure | 0.6MPa |
Compressed air consumption | 50L/H |

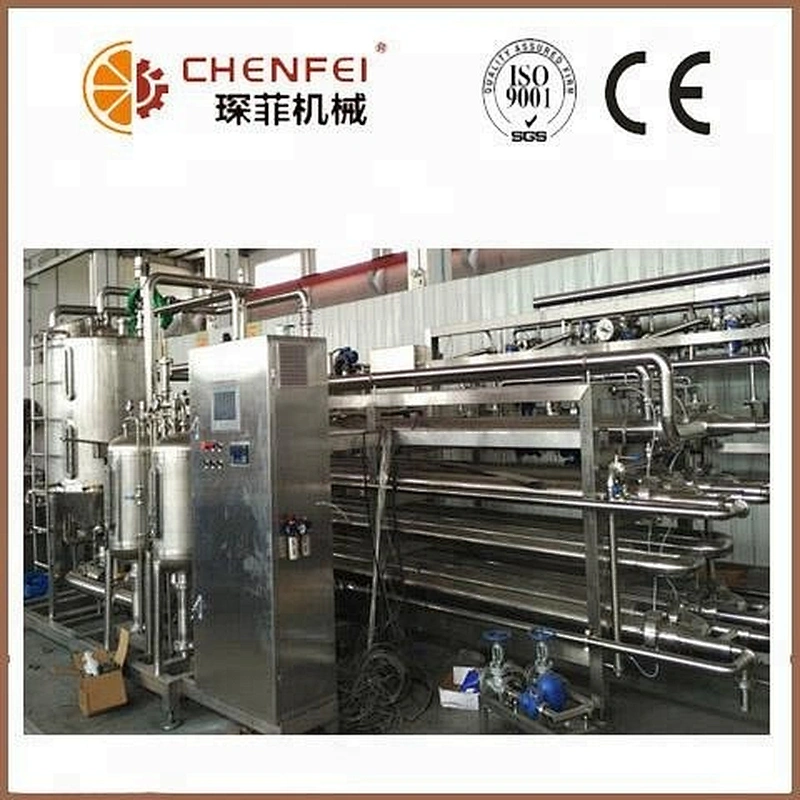

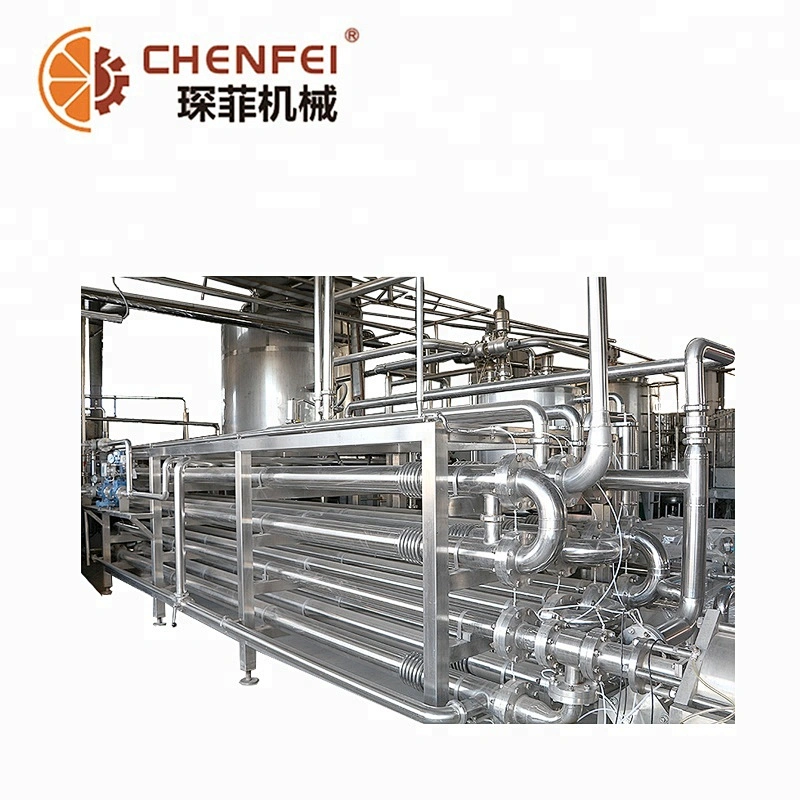

The following are tubular sterilization

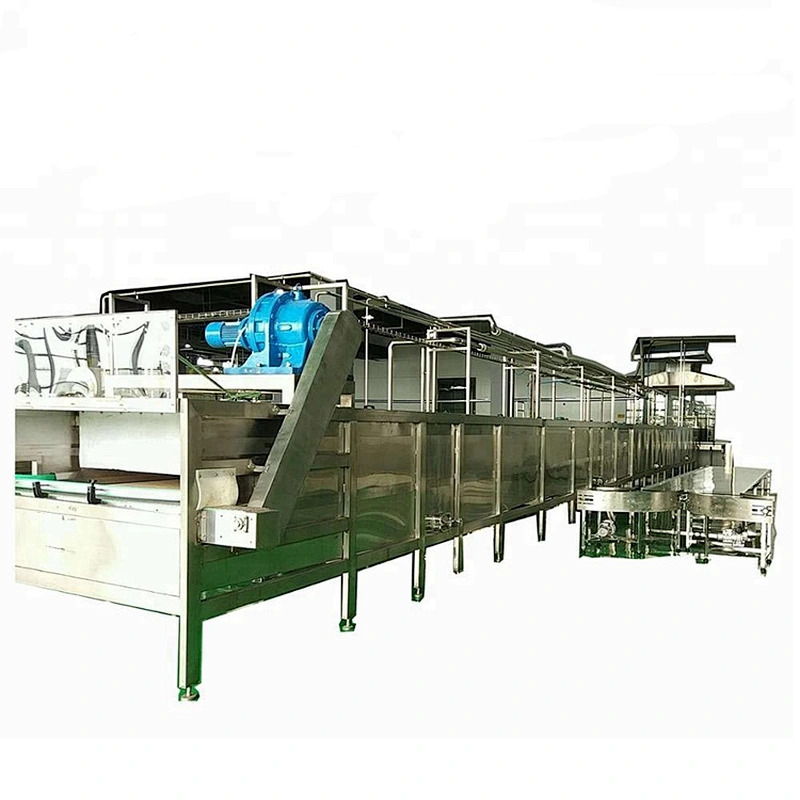

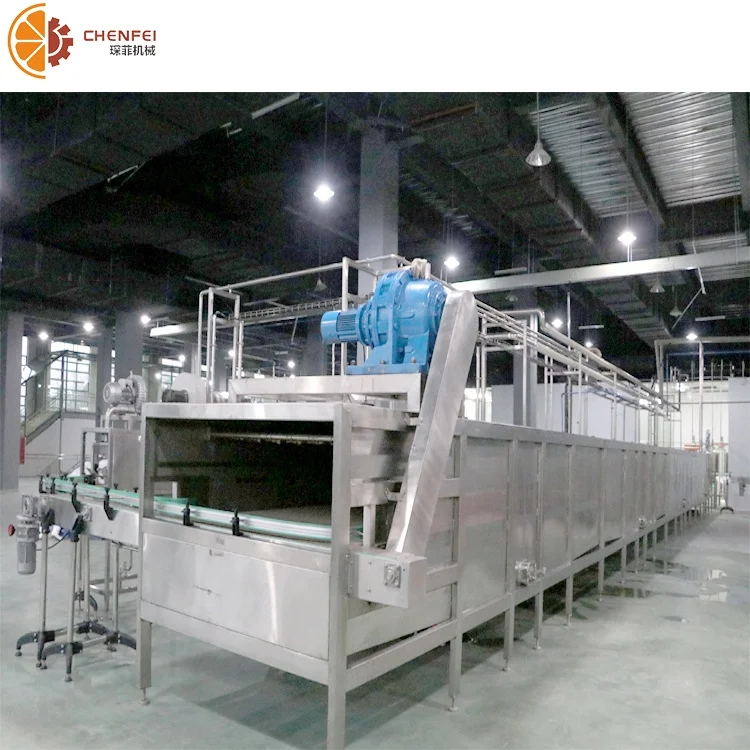

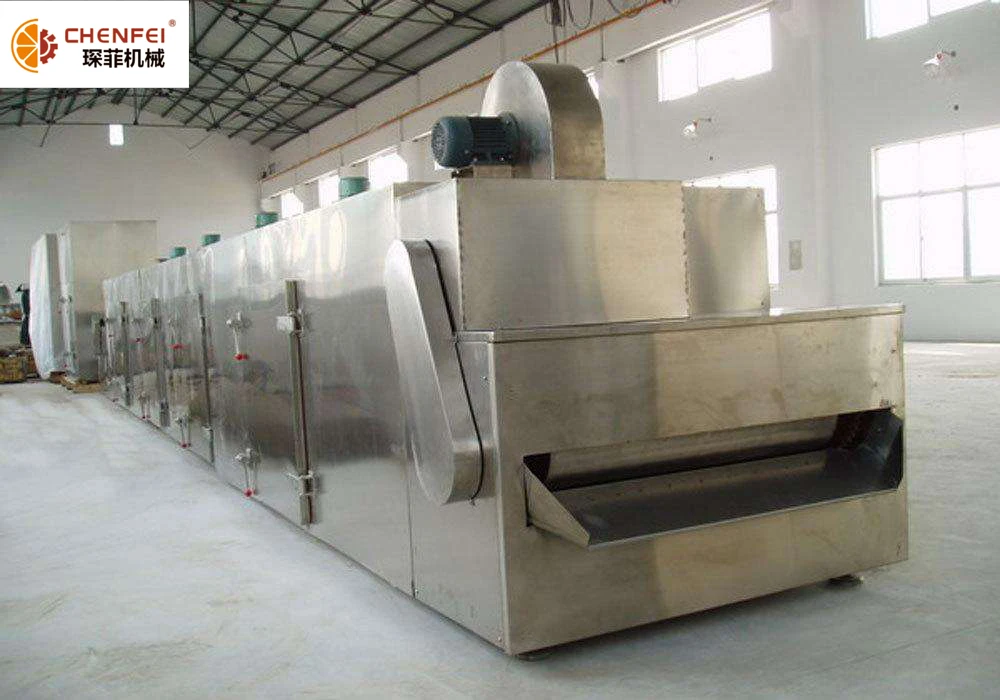

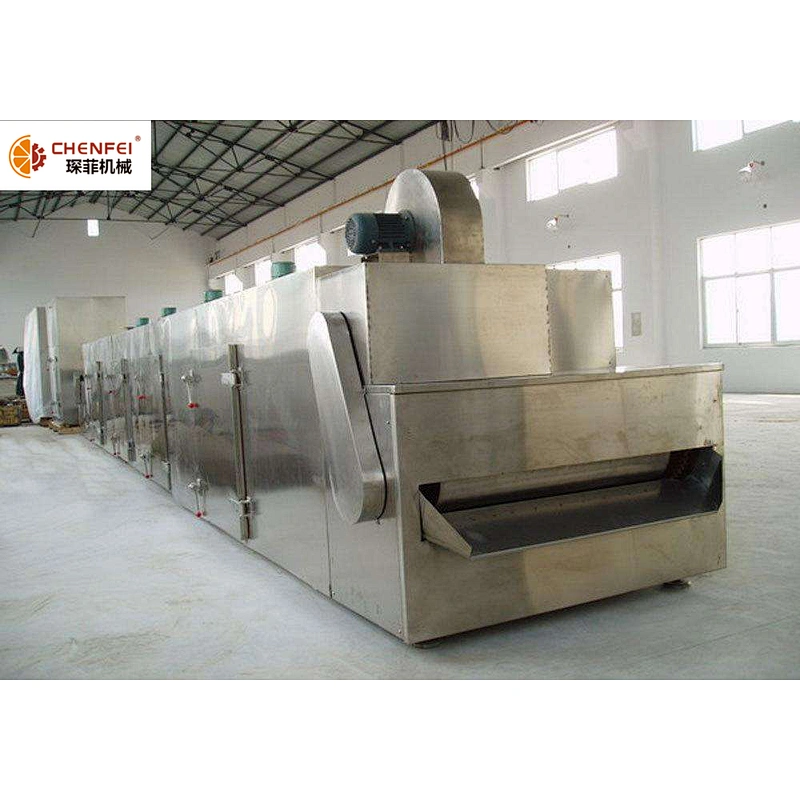

The following is spray tunnel sterilizer
Complete automatic mango production line
Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of mango processing production line are basically imported or domestic first-line brands: so the quality and equipment stability are relatively high, and the service of Philippine mechanical after-sales has always been better in the industry.
Tropical fruit production lines such as mango and pineapple include bubbling cleaning, fruit inspection, brush cleaning, peeling and denucleation, beating, crushing, belt juice extraction, separation, concentration equipment, UHT sterilization and aseptic bag filling. Equipment composition. The entire production line and related equipment are designed for tropical fruit juices such as mango and pineapple according to international quality standards.
