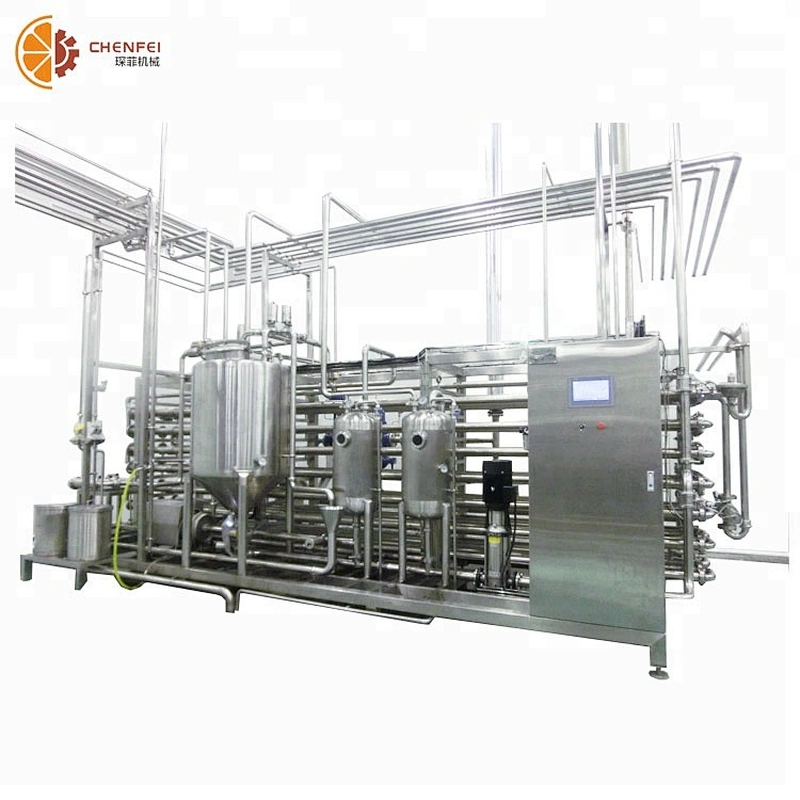

NFC Fresh Nature Juice Fruit Juicer Production Line juice extractor production line

• After-sales Service Provided:Engineers available to service machinery overseas
• Applicable Industries:Manufacturing Plant
• Applicable Industries:Food & Beverage Factory
• Applicable Industries:Farms
• After Warranty Service:Video technical support
• After Warranty Service:Online support
• After Warranty Service:Spare parts
• After Warranty Service:Field maintenance and repair service
• Local Service Location:None
• Showroom Location:None
• Video outgoing-inspection:Provided
• Machinery Test Report:Provided
• Marketing Type:New Product 2020
• Warranty of core components:1 Year
• Core Components:PLC
• Core Components:Engine
• Core Components:Bearing
• Core Components:Gearbox
• Core Components:Motor
• Core Components:Pressure vessel
• Core Components:Gear
• Core Components:Pump
• Condition:New
• Place of Origin:CN;JIA
• Brand Name:CFM
• Type:turnkey processing line
• Voltage:220V/380V
• Power:customized
• Weight:customized
• Dimension(L*W*H):customized
• Certification:CE/ISO9001
• Warranty:1 Year

NFC Fresh Nature Juice Fruit Juicer Production Line juice extractor production line

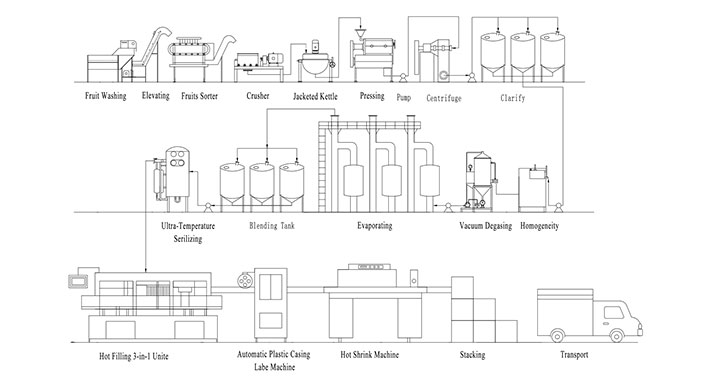

The juice is generally divided into clear juice and turbid juice. Common clear juice includes pineapple juice, grape juice, watermelon juice, blueberry juice, blackberry juice, etc. Turbid juice has orange juice, tomato juice, carrot juice, etc. Fruit juice with flesh usually includes peach, apricot, plum, plum, etc. Process flow of fruit juice processing: pretreatment (selection, cleaning, crushing, heat treatment)- juicing- coarse filtration- ingredient adjustment- fine filtration- homogeneous degassing- concentration- sterilization- filling.

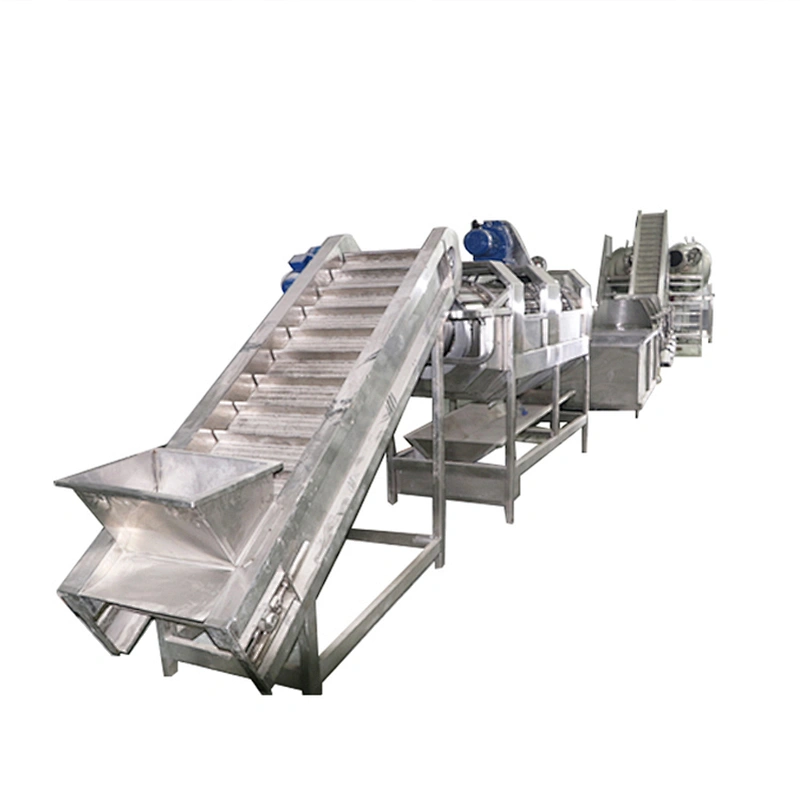

Pretreatment process of fruit juice

In the process of pretreatment, it is important to use dilute hydrochloric acid or fatty acid for washing the fruits and vegetables with more pesticide residues. After crushing and before squeezing, preheating treatment is mostly needed. The purpose is to soften the tissue of the flesh and improve the yield of the juice. In addition, different preheating temperatures can promote or inhibit enzyme activity. According to the properties of enzyme, proper pH value, temperature and action time will directly affect the color and flavor of the final product. Therefore, according to different market demands, we must grasp the different processing technologies.

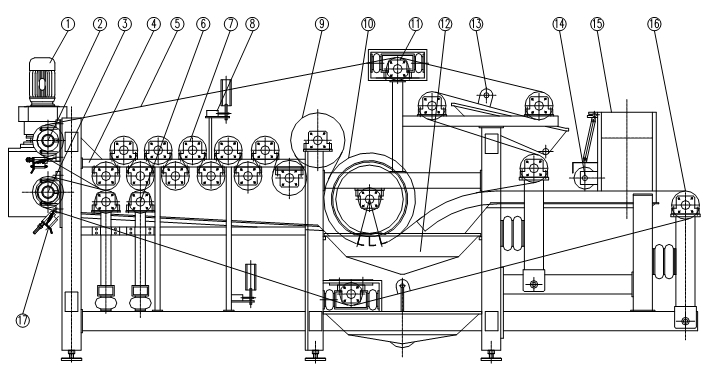

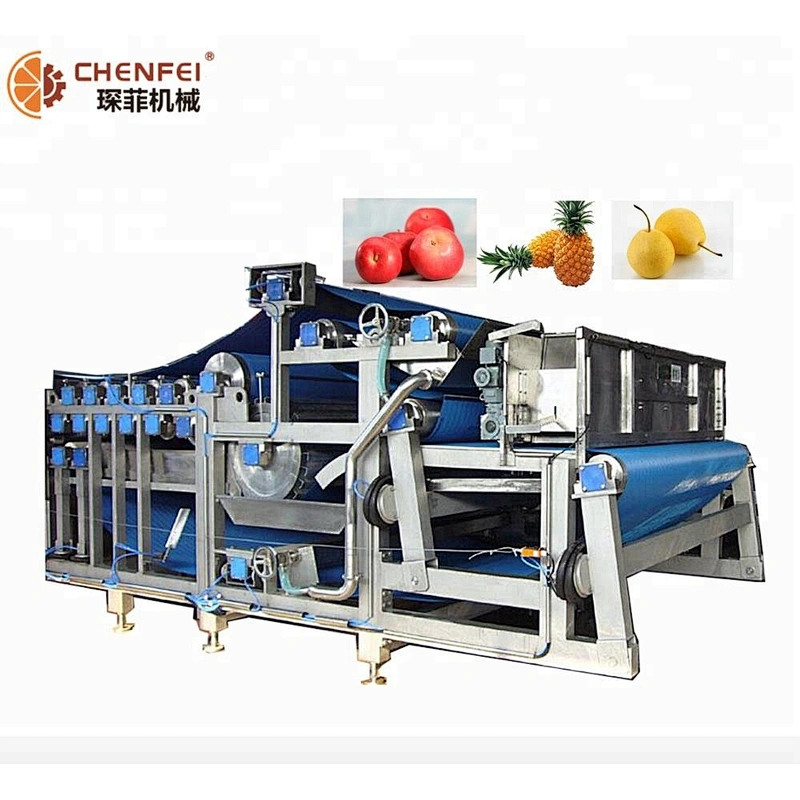

NFC juice extractor commercial extracting machine for fruit

1. Reducer motor; 2. Upper belt drive roller; 3. Lower belt drive roller;

4. Frame; 5. Filter belt; 6. Pressure roller; 7. Support pressure roller;

8. Correction control valve; 9. Large Supporting pressure rolls;

10. L-shaped squeeze rolls; 11. deflection rolls;

12. juice collecting tank; 13. mesh belt cleaning nozzle;

14.cloth rolls; 15.hopper; 16. tension rolls; 17. Scraper

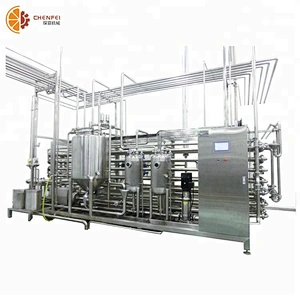

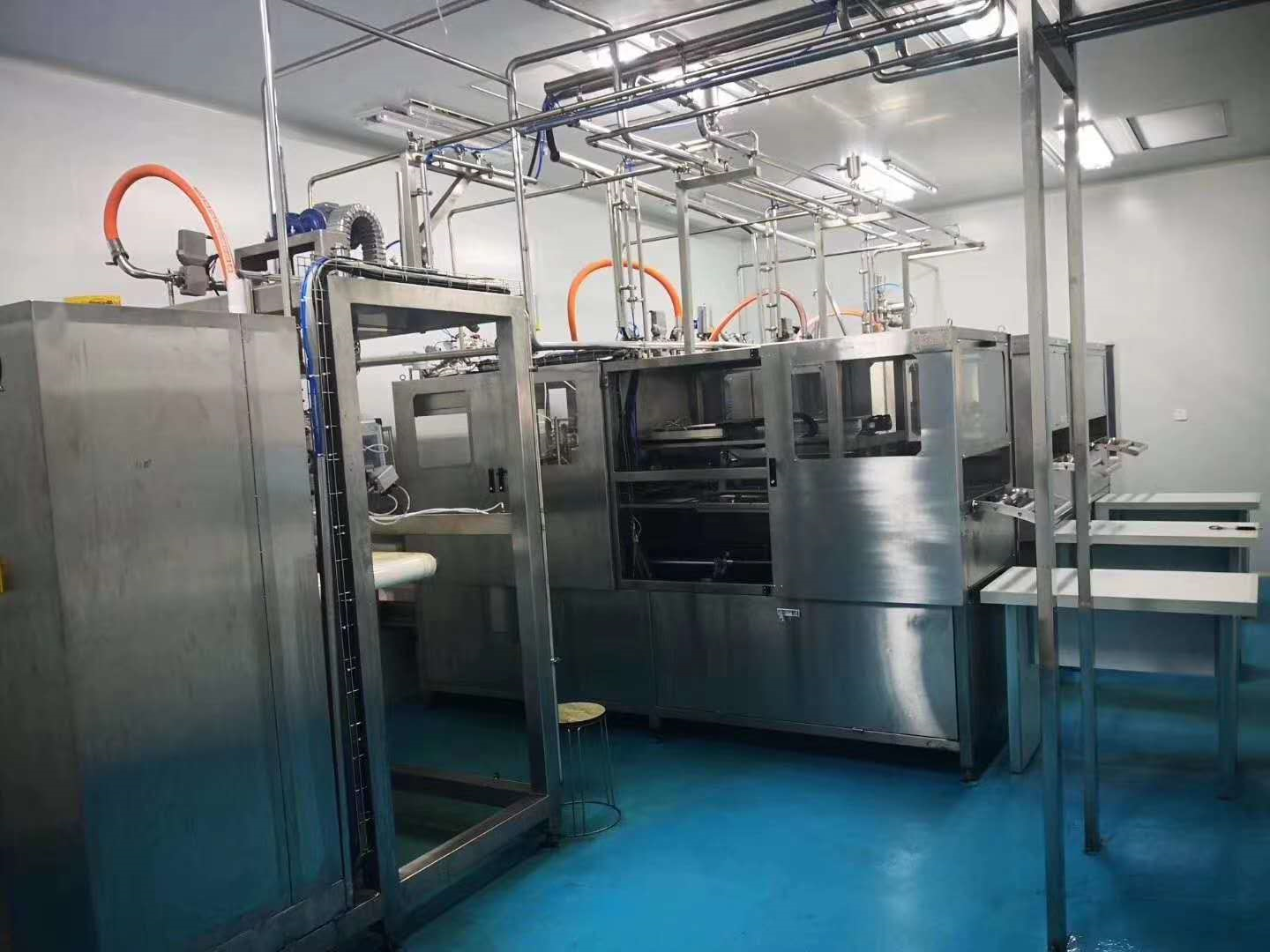

Sterilization and filling of fruit juice

Most of the clarified fruit juice is filled with hot filling. After filling, the fruit juice is pasteurization. Generally, high temperature and short time sterilization is used for NFC fruit juice and go straight to the aseptic filling machine.
