- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Condition:New
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- Place of Origin:Chine
- Brand Name:CFM
- Model Number:QW-TS
- Type:Other
- Voltage:220v/380v
- Power:9kw
- Weight:Customized
- Dimension(L*W*H):Customized
- Certification:CE/ISO9001
- Year:2019
- Application Scope:Food Processing Line
- Function:Sterilization
- Flow:1-20000L/H
- Capacity:Customized
- Raw material:SUS304 Stainless Steel
- Holding Time:5-20s(as per request)
- Sterilizing Temp.:80-140℃
- Package:Plastic Film and Wooden Case
- Advantage:Energy Saving and Wide Application

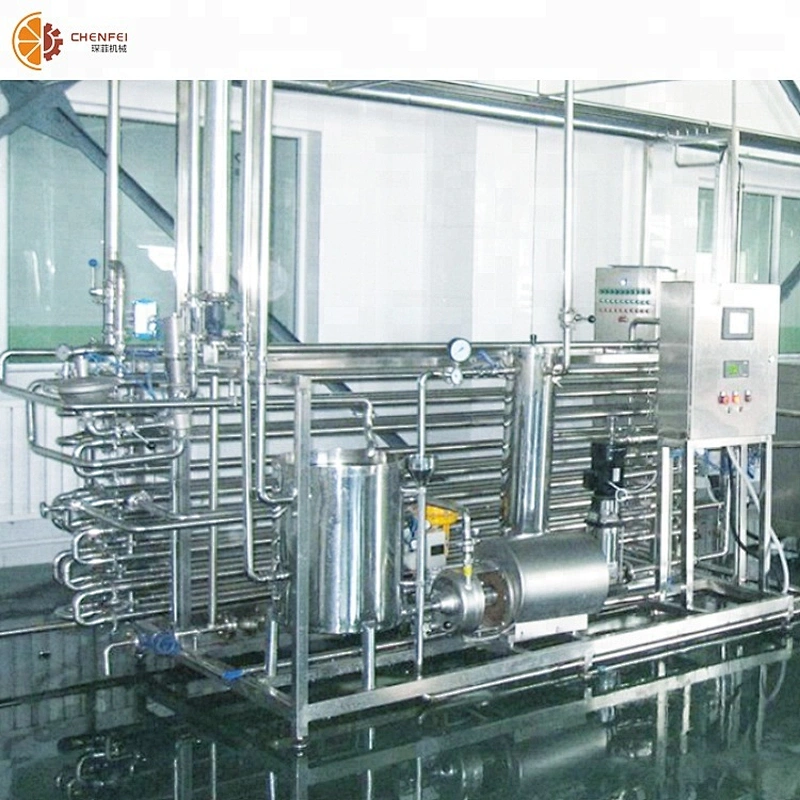

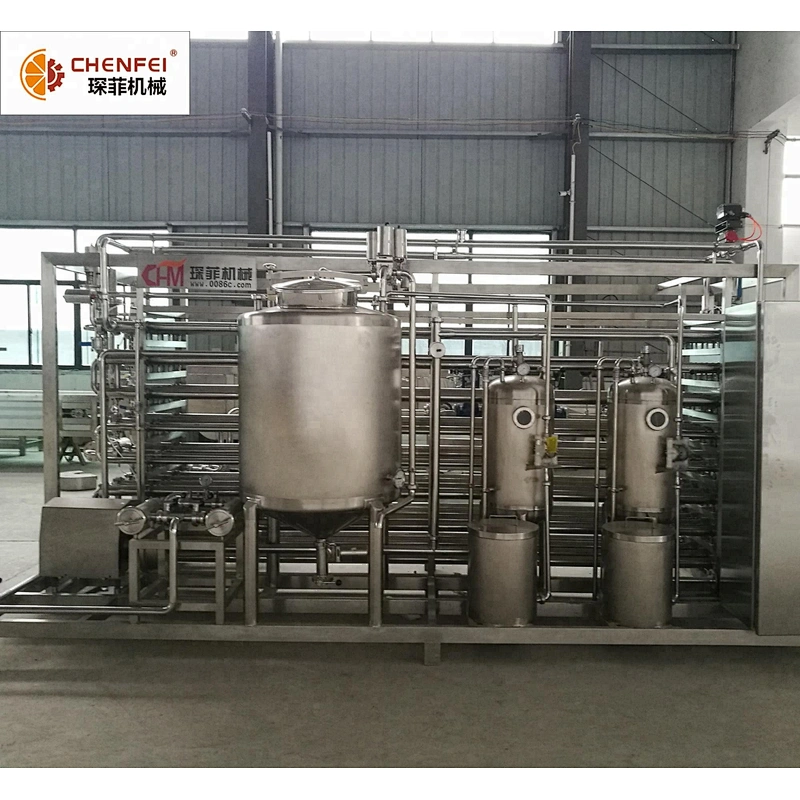

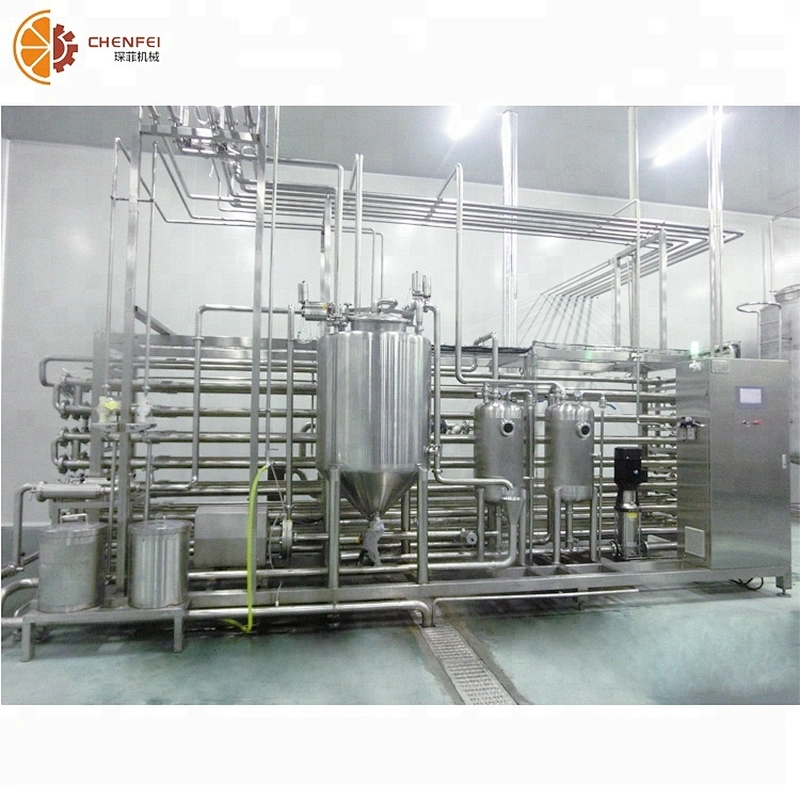

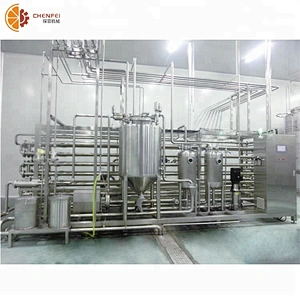

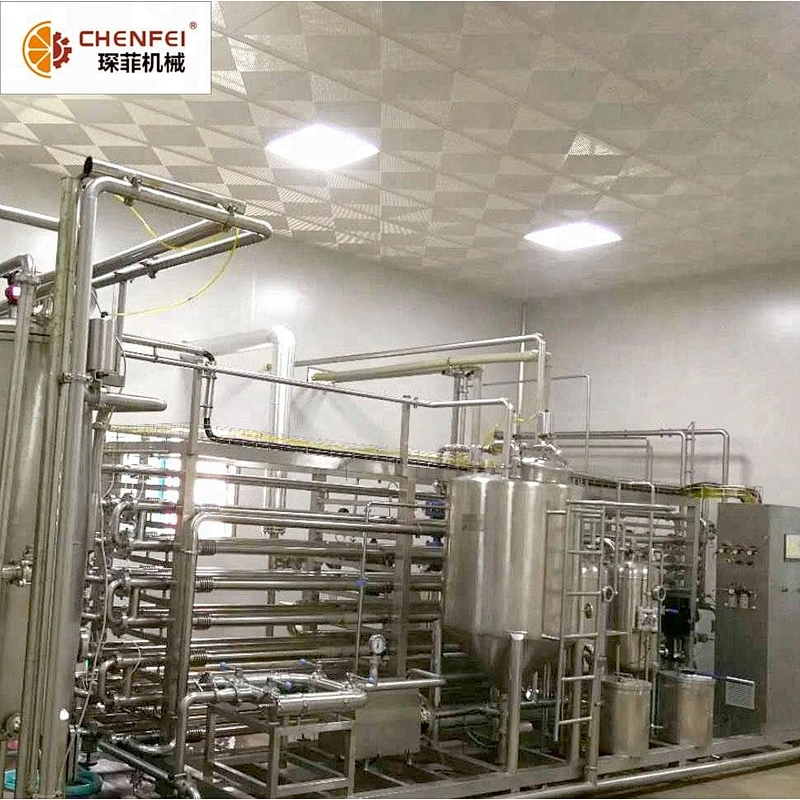

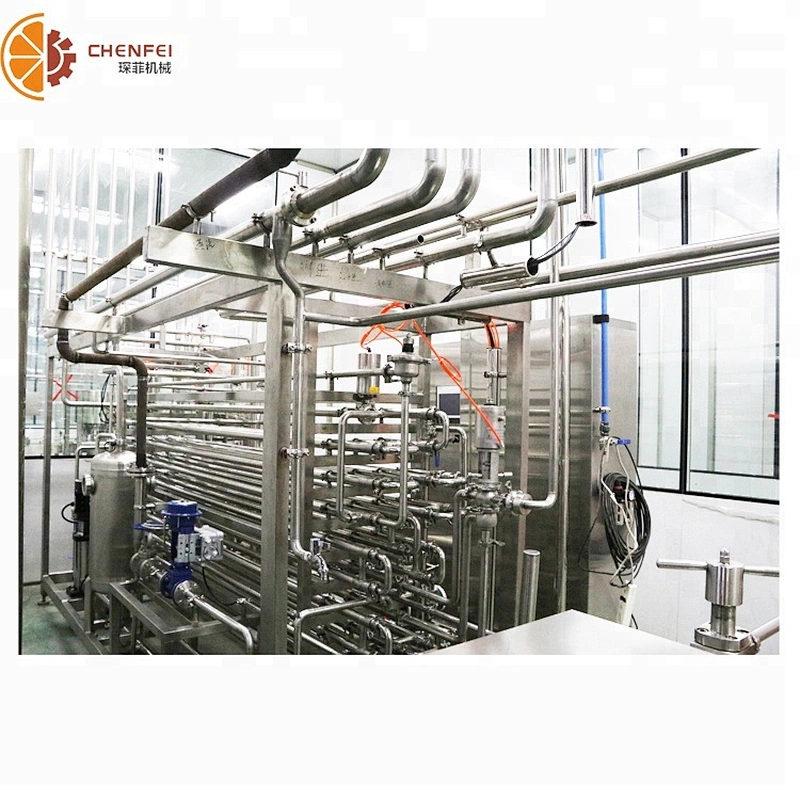

Product name:Tubular Sterilizer Machine
Model | CFM-UHT-PP1.5 | CFM-UHT-PP3 | CFM-UHT-PP5 |
Capacity(L/H) | 1500 | 3000 | 5000 |
Inlet temperature(ºC) | 25-40ºC | 25-40ºC | 25-40ºC |
Holding Time(s) | 120-180 | 120-180 | 120-180 |
Sterilizing temperature(ºC) | 95-121ºC | 95-121ºC | 95-121ºC |
Outlet temperature(ºC) | 25-35ºC | 25-35ºC | 25-35ºC |
Cooling water T(ºC) | 30ºC | 30ºC | 30ºC |
Steam pressure | 0.5MPa | 0.5MPa | 0.5MPa |
Steam consumption | `150Kg/h | `210Kg/h | `280Kg/h |
Compressed air pressure | 0.6MPa | 0.6MPa | 0.6MPa |
Compressed air consumption | 50L/H | 50L/H | 60L/H |
machine size(LxWxH) | 7000x2000x2000 | 7000x2000x2000 | 7000x2000x2000 |
Weight | 1700kg | 2000kg | 2200kg |
Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of mango processing production line are basically imported or domestic first-line brands: so the quality and equipment stability are relatively high, and the service of Philippine mechanical after-sales has always been better in the industry.
Tropical fruit production lines such as mango and pineapple include bubbling cleaning, fruit inspection, brush cleaning, peeling and denucleation, beating, crushing, belt juice extraction, separation, concentration equipment, UHT sterilization and aseptic bag filling. Equipment composition. The entire production line and related equipment are designed for tropical fruit juices such as mango and pineapple according to international quality standards.
