- Processing Types:aseptic filling
- Key words:aseptic bag filling machine
- Capacity:according to the customer's requirements
- Filling volume:1-220L
- Advantage:Easy to opperate and energy saving
- Bag type:aseptic bag
- Filling material:juice, jam and liquid
- Type:Filling Machine
- Applicable Industries:Food & Beverage Factory
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Application:Beverage
- Application:Food
- Packaging Type:Bags
- Packaging Material:Plastic
- Packaging Material:Wood
- Automatic Grade:Automatic
- Driven Type:Electric
- Warranty:1 Year
- After-sales Service Provided:Online support
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Field installation, commissioning and training
- Key Selling Points:Easy to Operate
- Machinery Capacity:400BPH
- Machinery Capacity:500BPH
- Filling Material:Beer
- Filling Material:Milk
- Filling Material:Water
- Filling Material:Oil
- Filling Material:Juice
- Marketing Type:Hot Product 2019
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:PLC
- Place of Origin:CN;JIA
- Voltage:220V/380V
- Brand Name:CFM
- Dimension(L*W*H):As customized
- Weight:As customized
- Certification:ISO9001
- Filling Accuracy:0.5%

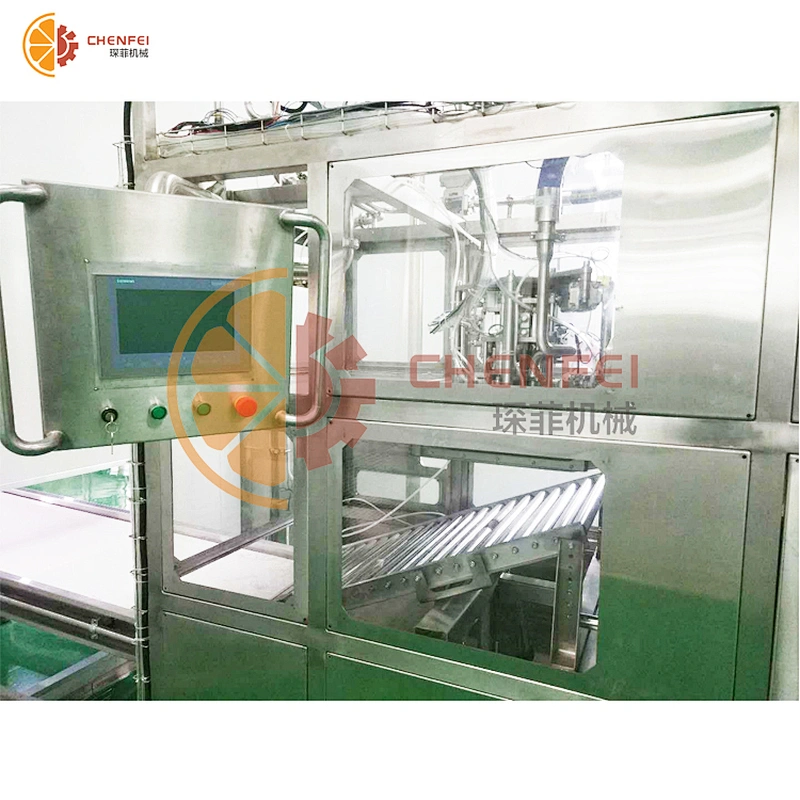

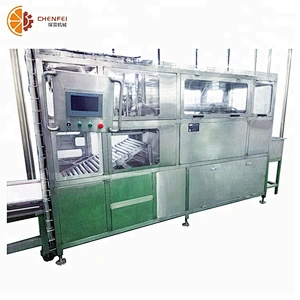

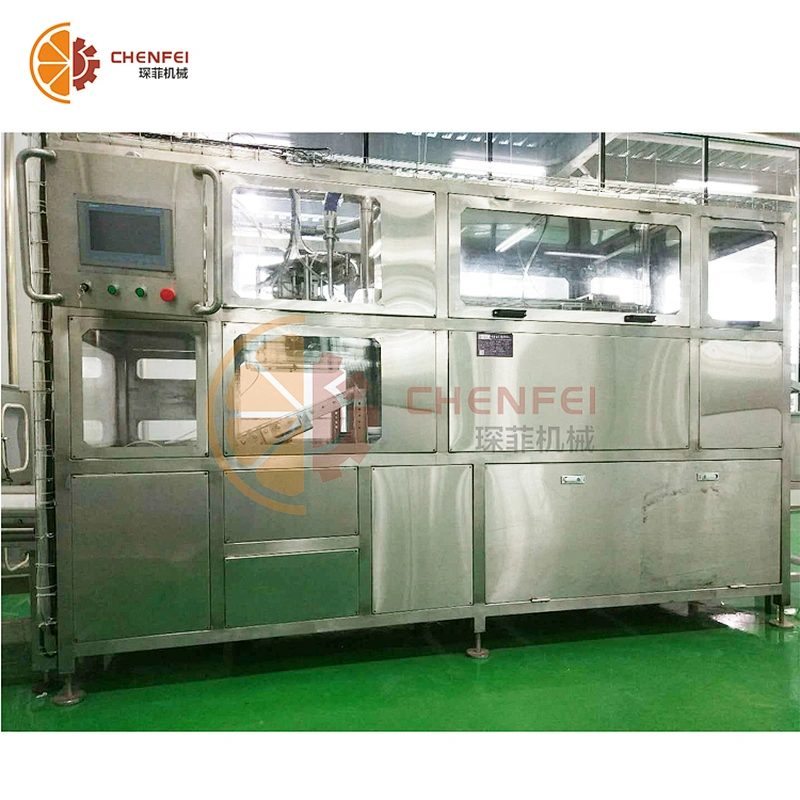

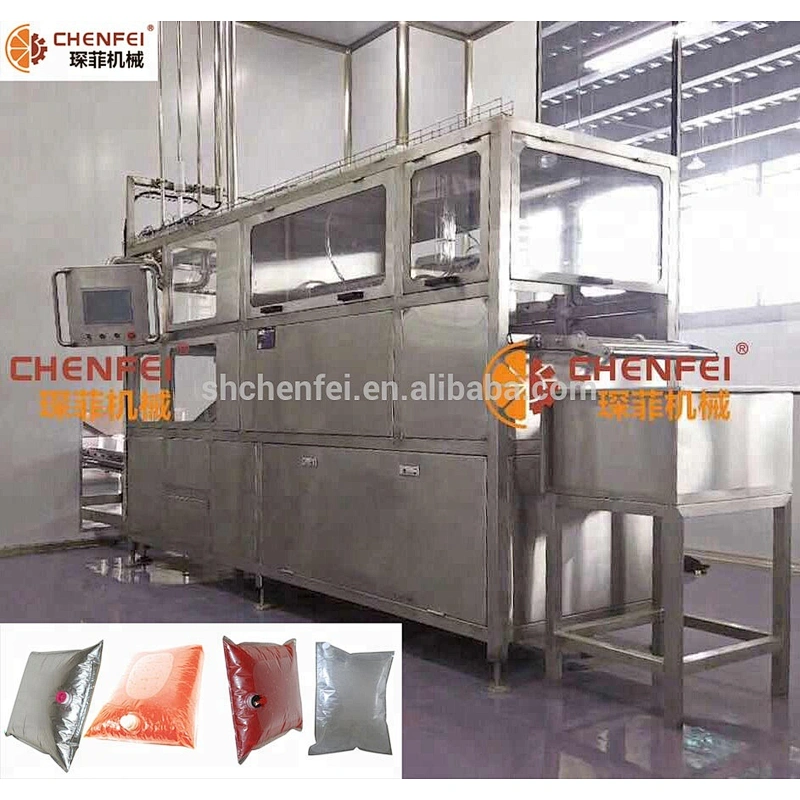

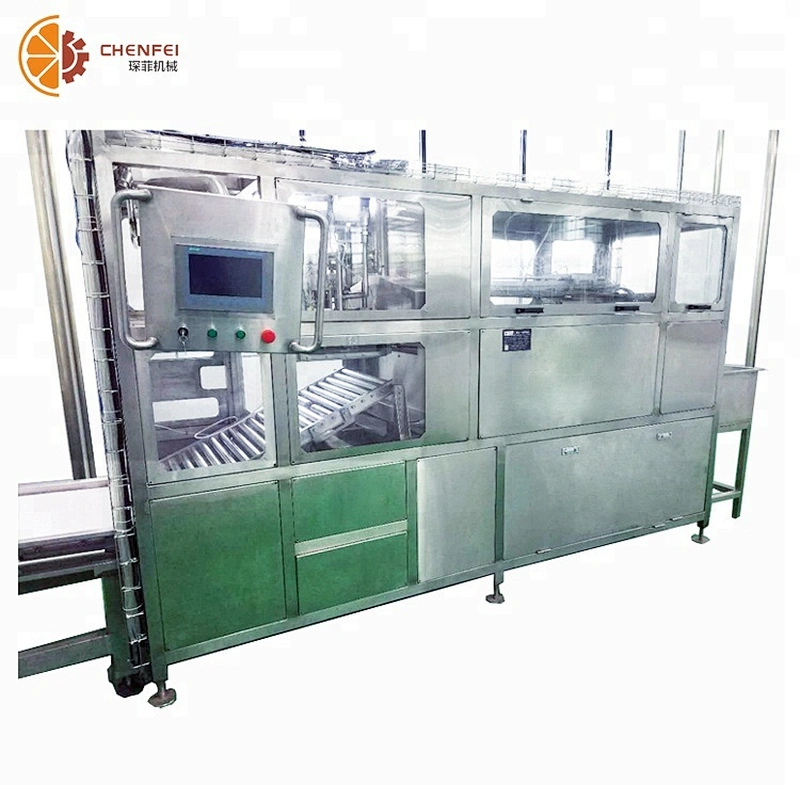

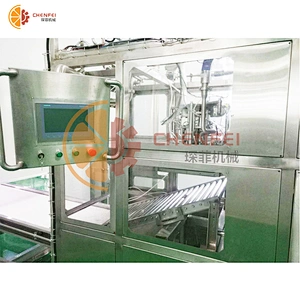

Aseptic BIB milk juice bag in box filling machine
BIB aseptic filling machine is composed of aseptic filling system, cylinder assembly, flow measurement system, temperature adjustment system, human-machine interface and PLC control system. At room temperature, put the sterilized product in a self-contained sterile room isolated from the outside world and use the robot to complete the actions of opening, filling and capping automatically, so there is no pollution and the purpose of aseptic filling is achieved.
TECHNICAL PARAMETER
FILING CAPACITY:1-25 L,200-220 Bags/h
BAG PENING SIZE:33 × 25.5cm
FILLING ACCURACY:±0.5%
CONDENSED AIR CONSUMPTION:36NL/min(6-8bar)
POWER:1.1kw
STEAM CONSUMPTION :40kg/h(≥3bar)
